一文详解PHP实现职责链设计模式（附代码示例）

时间：2023-01-17 11:50

本篇文章给大家带来了关于PHP设计模式的相关知识，其中主要介绍了PHP是怎么实现职责链设计模式的，下面一起来看一下，希望对需要的朋友有所帮助。

PHP实现职责链设计模式

参考文章地址：深入聊聊设计模式利器之“职责链模式”（附go实现流程）

实现原理看参考文章就好了原文是用 go 语言去实现，这里写一个 php 版本的实现方式，框架用的 hyperf。

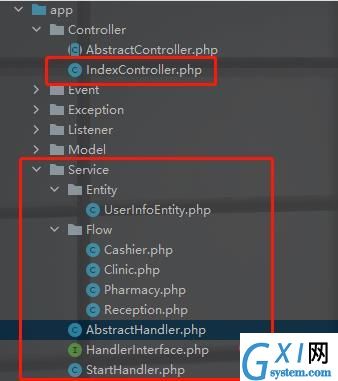

文件结构：

IndexController 为调用端，UserInfoEntity 用户实体用于存用户信息，flow 里面的为各种处理流程

IndexController

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Controller;
use App\Service\Entity\UserInfoEntity;
use App\Service\Flow\Cashier;
use App\Service\Flow\Clinic;
use App\Service\Flow\Pharmacy;
use App\Service\Flow\Reception;
use App\Service\StartHandler;
class IndexController extends AbstractController
{
    public function index()
    {
        $startHandler = new StartHandler();
        $userInfo = (new UserInfoEntity())->setName('zhangsan');
        $startHandler->setNextHandler(new Reception())
            ->setNextHandler(new Clinic())
            ->setNextHandler(new Cashier())
            ->setNextHandler(new Pharmacy());
        $startHandler->execute($userInfo);
    }
}

UserInfoEntity

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service\Entity;
class UserInfoEntity
{
    private string $name;
    private bool $registrationDone = false;
    private bool $doctorCheckUpDone = false;
    private bool $medicineDone = false;
    private bool $paymentDone = false;
    public function getName(): string
    {
        return $this->name;
    }
    public function setName(string $name): UserInfoEntity
    {
        $this->name = $name;
        return $this;
    }
    public function isRegistrationDone(): bool
    {
        return $this->registrationDone;
    }
    public function setRegistrationDone(bool $registrationDone): UserInfoEntity
    {
        $this->registrationDone = $registrationDone;
        return $this;
    }
    public function isDoctorCheckUpDone(): bool
    {
        return $this->doctorCheckUpDone;
    }
    public function setDoctorCheckUpDone(bool $doctorCheckUpDone): UserInfoEntity
    {
        $this->doctorCheckUpDone = $doctorCheckUpDone;
        return $this;
    }
    public function isMedicineDone(): bool
    {
        return $this->medicineDone;
    }
    public function setMedicineDone(bool $medicineDone): UserInfoEntity
    {
        $this->medicineDone = $medicineDone;
        return $this;
    }
    public function isPaymentDone(): bool
    {
        return $this->paymentDone;
    }
    public function setPaymentDone(bool $paymentDone): UserInfoEntity
    {
        $this->paymentDone = $paymentDone;
        return $this;
    }
}

HandlerInterface

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service;
use App\Service\Entity\UserInfoEntity;
interface HandlerInterface
{
    public function setNextHandler(HandlerInterface $handler): HandlerInterface;
    public function execute(UserInfoEntity $info);
    public function do(UserInfoEntity $info);
}

AbstractHandler

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service;
use App\Service\Entity\UserInfoEntity;
class AbstractHandler implements HandlerInterface
{
    private HandlerInterface $nextHandler;
    public function setNextHandler(HandlerInterface $handler): HandlerInterface
    {
        $this->nextHandler = $handler;
        return $this->nextHandler;
    }
    public function execute(UserInfoEntity $info)
    {
        if (! empty($this->nextHandler)) {
            try {
                $this->nextHandler->do($info);
            } catch (\Exception $e) {
                return;
            }
            return $this->nextHandler->execute($info);
        }
    }
    public function do(UserInfoEntity $info)
    {
        // TODO: Implement do() method.
    }
}

StartHandler

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service;
class StartHandler extends AbstractHandler
{
}

Cashier

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service\Flow;
use App\Service\AbstractHandler;
use App\Service\Entity\UserInfoEntity;
class Cashier extends AbstractHandler
{
    public function do(UserInfoEntity $info)
    {
        echo '收费' . PHP_EOL;
        $info->setPaymentDone(true);
    }
}

Clinic

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service\Flow;
use App\Service\AbstractHandler;
use App\Service\Entity\UserInfoEntity;
class Clinic extends AbstractHandler
{
    public function do(UserInfoEntity $info)
    {
        echo '诊室' . PHP_EOL;
        $info->setDoctorCheckUpDone(true);
    }
}

Pharmacy

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service\Flow;
use App\Service\AbstractHandler;
use App\Service\Entity\UserInfoEntity;
class Pharmacy extends AbstractHandler
{
    public function do(UserInfoEntity $info)
    {
        echo '药房' . PHP_EOL;
        $info->setMedicineDone(true);
    }
}

Reception

<?php
declare(strict_types=1);
/**
 * This file is part of Hyperf.
 *
 * @link     https://www.hyperf.io
 * @document https://hyperf.wiki
 * @contact  group@hyperf.io
 * @license  https://github.com/hyperf/hyperf/blob/master/LICENSE
 */
namespace App\Service\Flow;
// 挂号
use App\Service\AbstractHandler;
use App\Service\Entity\UserInfoEntity;
class Reception extends AbstractHandler
{
    public function do(UserInfoEntity $info)
    {
        echo '挂号' . PHP_EOL;
        $info->setRegistrationDone(true);
    }
}

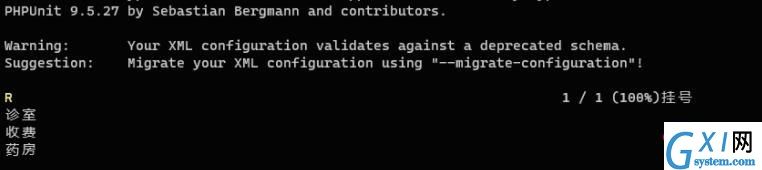

写一个单元测试跑一下 indexController 的 index 方法，结果如下：
