一文详解Vue+flex布局实现TV端城市列表
时间：2023-01-20 14:35

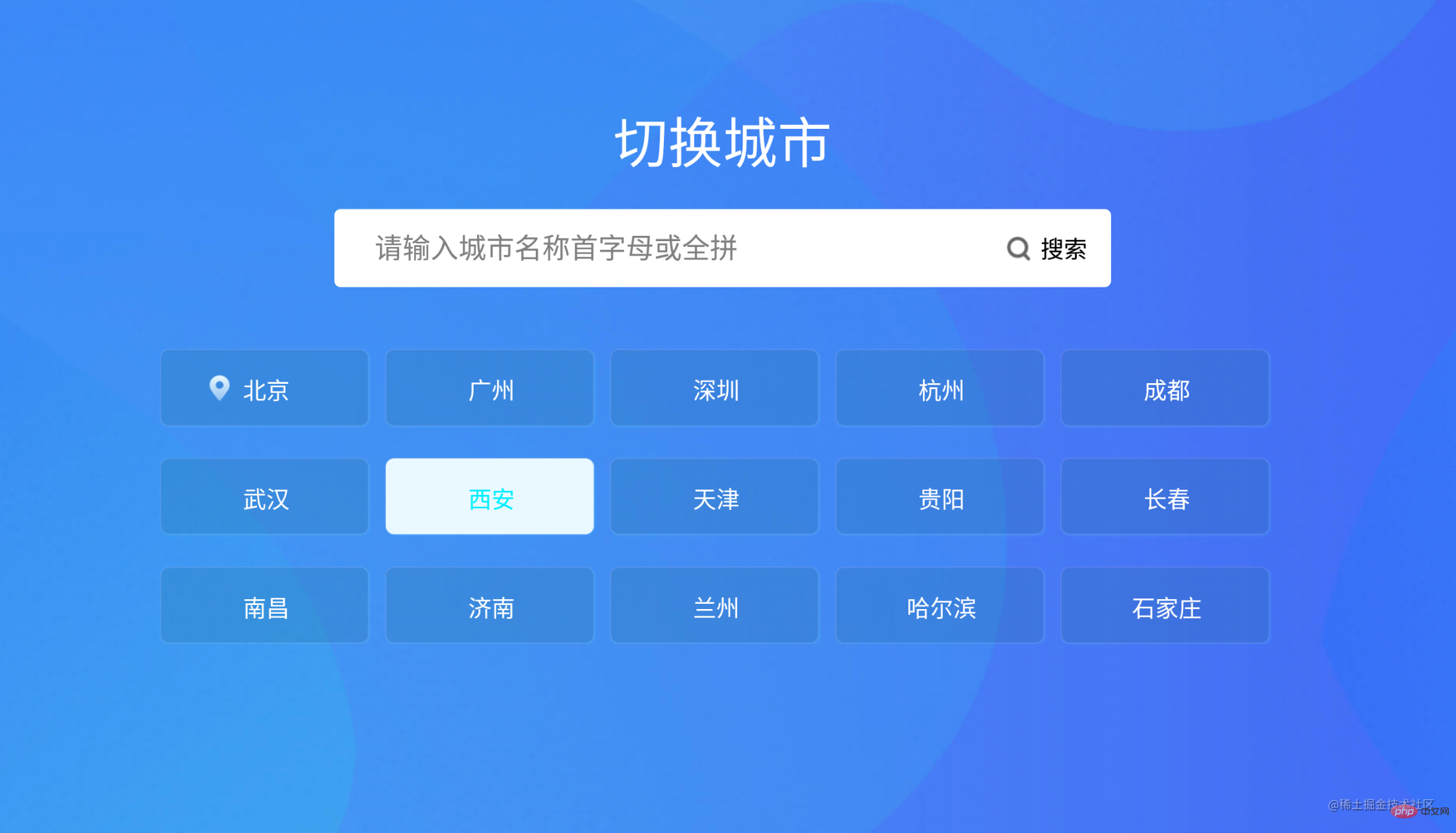

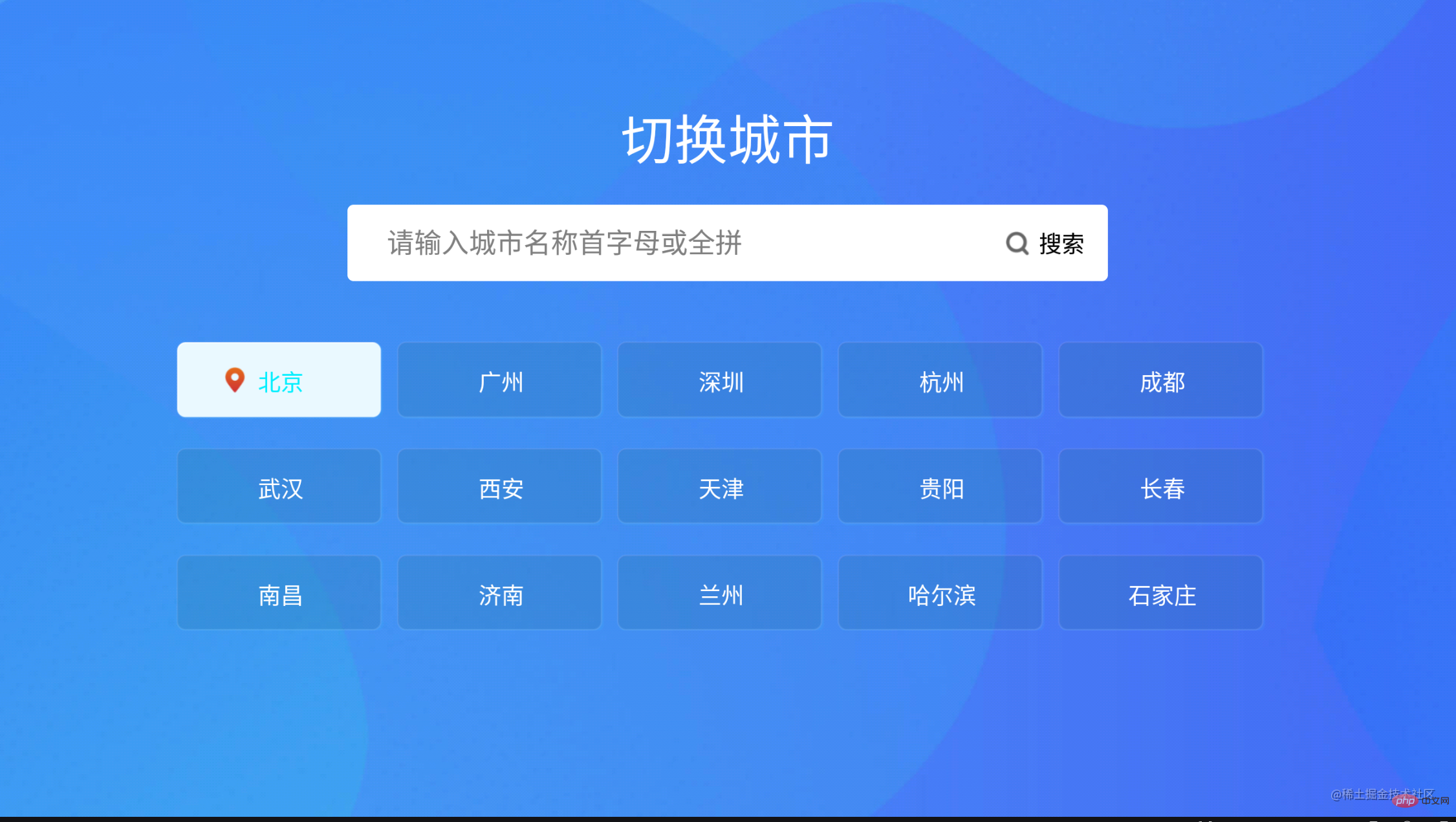

本篇文章给大家带来了关于Vue布局的相关知识，其中主要给大家总结介绍Vue是怎么利用flex布局来实现TV端城市列表效果的，非常全面详细，下面一起来看一下，希望对需要的朋友有所帮助。 Vue利用flex布局实现TV端城市列表 vue中城市列表和搜索很常见，这篇博客就来说说咋实现搜索和城市列表 1.实现搜索布局代码： 2.搜索布局css样式代码： 3.城市列表布局代码： 4.城市列表css样式代码： 5.城市列表获取焦点的事件： 主要是在div设置:focusable="true"和@focus="onFocus" 6.设置焦点背景颜色和字体效果： 主要是设置:duplicateParentState="true"当文本获得焦点时颜色不受父布局影响，还可以设置焦点放大和带边框效果 焦点效果的样式：:style="{focusColor: focusHotTextColor,fontSize: textFontSize,fontWeight: textFontWeight,} 7.搜索框输入事件： 8.搜索框获取焦点的事件： 9.默认弹出TV软键盘： 10.完整代码如下： 11.实现的效果截图如下： 相关推荐：vuejs视频教程 以上就是一文详解Vue+flex布局实现TV端城市列表的详细内容，更多请关注gxlsystem.com其它相关文章！<div class="search-bar">
<input class="search-input" v-model="citySearchResult" :placeholder="searchDefault" :key="searchTitle"
@endEditing="endEditing" :focusable="true" ref="searchInput" :duplicateParentState="true"
:enableFocusBorder="true"/>
<img class="index-root-search-image-view-css" :src="searchIcon">
<span class="index-root-search-text-view-css" ref="textViewCity">{{searchDefaultKeyWord}}</span>
</div>.search-bar-root {
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
margin-top: 140px;
}.index-root-search-title-css {
flex-direction: column;
align-items: center;
justify-content: center;
margin-bottom: 40px;
}.search-bar-root .search-bar {
background-color: #ffffff;
width: 1000px;
height: 100px;
display: flex;
justify-content: center;
border-radius: 8px;
}.search-input {
width: 780px;
border-radius: 8px;
font-size: 36px;
font-family: PingFangSC-Regular, PingFang SC;
font-weight: 400;
color: #000000;
margin-left: 40px;
text-indent: 40px;
}.index-root-search-image-view-css {
position: absolute;
width: 32px;
height: 32px;
top: 35px;
bottom: 35px;
right: 0;
margin-right: 102px;
text-align: center;
}.index-root-search-flex-view-css {
display: flex;
flex-wrap: wrap;
flex-direction: row;
width: 1450px;
margin-left: 245px;
margin-right: 245px;
margin-top: 40px;
}.index-root-search-text-view-css {
font-size: 30px;
font-family: PingFangSC-Regular, PingFang SC;
color: #000000;
text-align: center;
font-weight: 400;
top: 0;
bottom: 0;
right: 0;
position: absolute;
margin-right: 30px;
}.index-root-search-title-text-view-css {
font-size: 70px;
font-family: PingFangSC-Regular, PingFang SC;
color: #ffffff;
text-align: center;
opacity: 1.0;
}.search-city-button-view-css {
width: 270px;
height: 100px;
background-color: rgba(0, 0, 0, .1);
margin-right: 20px;
margin-top: 40px;
border-radius: 11px;
border-width: 2px;
border-color: rgba(255, 255, 255, 0.1);
focus-background-color: #fff;
}.search-city-button-view-css .city-sel-box {
border-width: 2px;
border-color: #32C5FF;
}<div class="index-root-search-flex-view-css" :clipChildren="false" ref="citySearch">
<div class="search-city-button-view-css"
v-for="(item,cityId) in hotCity" :focusable="true"
:key="cityId"
:ref="`hotRef${cityId}`" @focus="onFocus" :clipChildren="false">
<div class="icon-location-reactive" ref="searchLocation" :duplicateParentState="true" style="visibility: visible;margin-right: 20px" v-if="showHot && cityId===0">
<img src="@/assets/location.png" alt="" class="icon-location" showOnState="normal">
<img src="@/assets/location_hot_focus.png" alt="" class="icon-location" showOnState="focused">
</div>
<span class="search-city-hot-text-iew-css" :duplicateParentState="true" showOnState="focused"
ref="searchHotSelected"
:style="{focusColor: focusHotTextColor,fontSize: textFontSize,fontWeight: textFontWeight,}">{{item.cityName}}</span>
</div>.index-root-search-flex-view-css {
display: flex;
flex-wrap: wrap;
flex-direction: row;
width: 1450px;
margin-left: 245px;
margin-right: 245px;
margin-top: 40px;
}.index-root-search-text-view-css {
font-size: 30px;
font-family: PingFangSC-Regular, PingFang SC;
color: #000000;
text-align: center;
font-weight: 400;
top: 0;
bottom: 0;
right: 0;
position: absolute;
margin-right: 30px;
}.index-root-search-title-text-view-css {
font-size: 70px;
font-family: PingFangSC-Regular, PingFang SC;
color: #ffffff;
text-align: center;
opacity: 1.0;
}.search-city-button-view-css {
width: 270px;
height: 100px;
background-color: rgba(0, 0, 0, .1);
margin-right: 20px;
margin-top: 40px;
border-radius: 11px;
border-width: 2px;
border-color: rgba(255, 255, 255, 0.1);
focus-background-color: #fff;
}.search-city-button-view-css .city-sel-box {
border-width: 2px;
border-color: #32C5FF;
}.icon-location-reactive {
position: absolute;
width: 26px;
height: 34px;
margin-left: 60px;
margin-top: 30px;
margin-bottom: 30px;
}.icon-location {
width: 26px;
height: 34px;
position: absolute;
left: 0;
top: 0;
z-index: 9;
}.search-city-hot-text-iew-css {
width: 270px;
height: 100px;
background-color: rgba(50, 197, 255, 0.1);
border-radius: 11px;
border: 2px solid #32C5FF;
font-size: 36px;
font-family: PingFangSC-Regular, PingFang SC;
text-align: center;
color: white;
}.search-city-empty {
margin-top: 40px;
width: 425px;
display: flex;
align-items: center;
justify-content: center;
flex-direction: column;
margin-left: 535px;
}.search-city-empty .icon-no-connect {
width: 425px;
height: 307px;
}.search-city-empty .empty-txt {
font-size: 32px;
font-family: PingFangSC-Light, PingFang SC;
font-weight: 300;
color: #FFFFFF;
margin-top: 60px;
}<div class="search-city-button-view-css"
v-for="(item,cityId) in hotCity" :focusable="true"
:key="cityId"
:ref="`hotRef${cityId}`" @focus="onFocus" :clipChildren="false">
<div class="icon-location-reactive" ref="searchLocation" :duplicateParentState="true" style="visibility: visible;margin-right: 20px" v-if="showHot && cityId===0">
<img src="@/assets/location.png" alt="" class="icon-location" showOnState="normal">
<img src="@/assets/location_hot_focus.png" alt="" class="icon-location" showOnState="focused">
</div>:enableFocusBorder="true"//设置获得焦点时的边框
:focusScale="1.0"//设置焦点放大时的倍数
<span class="search-city-hot-text-iew-css" :duplicateParentState="true" showOnState="focused"
ref="searchHotSelected"
:style="{focusColor: focusHotTextColor,fontSize: textFontSize,fontWeight: textFontWeight,}">{{item.cityName}}</span>//输入内容之后请求城市列表接口刷新数据
endEditing(e) {
console.log("--resultData--", this.citySearchResult)
},onFocus(e) {
this.focused = e.isFocused;
this.$emit("onButtonFocused", e.isFocused);
},mounted() {
this.hotCity = hotCity;
this.showHot = true;
this.pageLoading = true
//弹出软键盘
this.$refs.searchInput.focus()
//搜索框默认获取焦点
this.setHideLoading()
},<template>
<div class="index-root-search-view-css" :clipChildren="false">
<img class="search-background-view-css" :src="searchImageData"/>
<div class="search-bar-root">
<div class="index-root-search-title-css">
<span class="index-root-search-title-text-view-css"> {{ searchTitle }}</span>
</div>
<div class="search-bar">
<input class="search-input" v-model="citySearchResult" :placeholder="searchDefault" :key="searchTitle"
@endEditing="endEditing" :focusable="true" ref="searchInput" :duplicateParentState="true"
:enableFocusBorder="true"/>
<img class="index-root-search-image-view-css" :src="searchIcon">
<span class="index-root-search-text-view-css" ref="textViewCity">{{searchDefaultKeyWord}}</span>
</div>
<div class="index-root-search-flex-view-css" :clipChildren="false" ref="citySearch">
<div class="search-city-button-view-css"
v-for="(item,cityId) in hotCity" :focusable="true"
:key="cityId"
:ref="`hotRef${cityId}`" @focus="onFocus" :clipChildren="false">
<div class="icon-location-reactive" ref="searchLocation" :duplicateParentState="true" style="visibility: visible;margin-right: 20px" v-if="showHot && cityId===0">
<img src="@/assets/location.png" alt="" class="icon-location" showOnState="normal">
<img src="@/assets/location_hot_focus.png" alt="" class="icon-location" showOnState="focused">
</div>
<span class="search-city-hot-text-iew-css" :duplicateParentState="true" showOnState="focused"
ref="searchHotSelected"
:style="{focusColor: focusHotTextColor,fontSize: textFontSize,fontWeight: textFontWeight,}">{{item.cityName}}</span>
</div>
<div class="search-city-empty" v-if="hotCity.length === 0">
<img src="@/assets/no_content.png" alt="" class="icon-no-connect"/>
<p class="empty-txt">没有搜索结果~</p>
</div>
</div>
</div>
<loading-view
style="width: 100px;height: 100px;position: absolute;left:960px;right:960px;top:500px;bottom:500px;align-self:
center;align-items: center;justify-content: center" v-show="pageLoading"/>
</div></template><script>import searchImage from "@/assets/search_focus.png";import searchBackGroundImage from "@/assets/index-bg-qing.jpg";import {hotCity} from '@/views/contsants';import {ESLaunchManager} from "@extscreen/es-core";export default {
name: "city_list",
props: {
searchKeyWord: {
type: String,
default: '',
},
focusTextColor: {
type: String,
default: '#000000'
},
focusHotTextColor: {
type: String,
default: '#00EFFF'
},
textColor: {
type: String,
default: '#FFFFFF'
},
textFontSize: {
type: String,
default: '30px'
},
textFontWeight: {
type: Number,
default: 400
},
focusBackground: {
orientation: 'TL_BR',//TOP_BOTTOM,TR_BL, RIGHT_LEFT, BR_TL, BOTTOM_TOP,BL_TR,LEFT_RIGHT,TL_BR,
cornerRadius: [40, 40, 40, 40],
normal: ['#00000000', '#00000000'],
focused: ['#F5F5F5', '#F5F5F5'],
},
},
data() {
return {
pageLoading: false,
text: 'search city',
search: '',
searchIcon: searchImage,
searchImageData: searchBackGroundImage,
searchTitle: "切换城市",
searchDefaultKeyWord: '搜索',
searchDefault: '请输入城市名称首字母或全拼',
focusColor: '#f5f5f5',
citySearchResult: "",
hotCity: [],
cityName: "",
cityId: "",
showHot: true,
params: '',
}
},
activated() {
},
deactivated() {
this.resetModel()
},
mounted() {
this.hotCity = hotCity;
this.showHot = true;
this.pageLoading = true
//弹出软键盘
this.$refs.searchInput.focus()
//搜索框默认获取焦点
this.setHideLoading()
},
methods: {
setHideLoading() {
setTimeout(() => {
this.pageLoading = false
}, 500)
},
onFocus(e) {
this.focused = e.isFocused;
this.$emit("onButtonFocused", e.isFocused);
},
//输入内容之后请求城市
endEditing(e) {
console.log("--resultData--", this.citySearchResult)
},
onBackPressed() {
ESLaunchManager.finishESPage();
},
resetModel() {
this.citySearchResult = "";
this.hotCity = [];
this.pageLoading = false;
this.searchTitle = "";
this.searchDefaultKeyWord = "";
this.searchDefault = "";
},
}
}</script><style scoped>.index-root-search-view-css {
width: 1920px;
height: 1080px;
background-color: transparent;
}.search-background-view-css {
position: absolute;
left: 0;
top: 0;
right: 0;
bottom: 0;
background-color: transparent;
}.search-bar-root {
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
margin-top: 140px;
}.index-root-search-title-css {
flex-direction: column;
align-items: center;
justify-content: center;
margin-bottom: 40px;
}.search-bar-root .search-bar {
background-color: #ffffff;
width: 1000px;
height: 100px;
display: flex;
justify-content: center;
border-radius: 8px;
}.search-input {
width: 780px;
border-radius: 8px;
font-size: 36px;
font-family: PingFangSC-Regular, PingFang SC;
font-weight: 400;
color: #000000;
margin-left: 40px;
text-indent: 40px;
}.index-root-search-image-view-css {
position: absolute;
width: 32px;
height: 32px;
top: 35px;
bottom: 35px;
right: 0;
margin-right: 102px;
text-align: center;
}.index-root-search-flex-view-css {
display: flex;
flex-wrap: wrap;
flex-direction: row;
width: 1450px;
margin-left: 245px;
margin-right: 245px;
margin-top: 40px;
}.index-root-search-text-view-css {
font-size: 30px;
font-family: PingFangSC-Regular, PingFang SC;
color: #000000;
text-align: center;
font-weight: 400;
top: 0;
bottom: 0;
right: 0;
position: absolute;
margin-right: 30px;
}.index-root-search-title-text-view-css {
font-size: 70px;
font-family: PingFangSC-Regular, PingFang SC;
color: #ffffff;
text-align: center;
opacity: 1.0;
}.search-city-button-view-css {
width: 270px;
height: 100px;
background-color: rgba(0, 0, 0, .1);
margin-right: 20px;
margin-top: 40px;
border-radius: 11px;
border-width: 2px;
border-color: rgba(255, 255, 255, 0.1);
focus-background-color: #fff;
}.search-city-button-view-css .city-sel-box {
border-width: 2px;
border-color: #32C5FF;
}.icon-location-reactive {
position: absolute;
width: 26px;
height: 34px;
margin-left: 60px;
margin-top: 30px;
margin-bottom: 30px;
}.icon-location {
width: 26px;
height: 34px;
position: absolute;
left: 0;
top: 0;
z-index: 9;
}.search-city-hot-text-iew-css {
width: 270px;
height: 100px;
background-color: rgba(50, 197, 255, 0.1);
border-radius: 11px;
border: 2px solid #32C5FF;
font-size: 36px;
font-family: PingFangSC-Regular, PingFang SC;
text-align: center;
color: white;
}.search-city-empty {
margin-top: 40px;
width: 425px;
display: flex;
align-items: center;
justify-content: center;
flex-direction: column;
margin-left: 535px;
}.search-city-empty .icon-no-connect {
width: 425px;
height: 307px;
}.search-city-empty .empty-txt {
font-size: 32px;
font-family: PingFangSC-Light, PingFang SC;
font-weight: 300;
color: #FFFFFF;
margin-top: 60px;
}</style>
热门排行
今日推荐
-
搜狗搜索浏览器免费版
版本：v8.0.0.7
大小：39.36MB
日期：2024-11-12
-
掌上看家官方版
版本：v4.1.3
大小：34.91MB
日期：2024-11-12
-
7723游戏盒子正版
版本：v4.3.1
大小：24.11MB
日期：2024-11-12
-
UU测速完整版
版本：v1.0.0
大小：40.69MB
日期：2024-11-12
-
高德地图完整版
版本：v1.0
大小：152.83MB
日期：2024-11-12
-
聊呗官方版
版本：v1.10.0
大小：42.82MB
日期：2024-11-12
热门手游
-
恐怖小火车大冒险手机版
版本：v1.0
大小：59 MB
日期：2024-11-12
-
堕日浩劫免费版
版本：v0.4.426
大小：279.27MB
日期：2024-11-12
-
射击战场安卓版
版本：v1.0.5
大小：67.38MB
日期：2024-11-12
-
病毒猎人：地下城逃生正版
版本：v1.6.11
大小：59.92MB
日期：2024-11-12
-
抢滩登陆安卓版
版本：v1.1.9.340
大小：332.12MB
日期：2024-11-12
-
真实拳击免费版
版本：v2.9.0
大小：303.26MB
日期：2024-11-12
