制作NetCore WebSocket即时通讯实例详解

时间:2017-08-08 11:23

这篇文章主要为大家详细介绍了NetCore WebSocket即时通讯示例,具有一定的参考价值,感兴趣的小伙伴们可以参考一下

NetCore WebSocket 即时通讯示例,供大家参考,具体内容如下

1.新建Netcore Web项目

2.创建简易通讯协议


public class MsgTemplate
 {
 public string SenderID { get; set; }
 public string ReceiverID { get; set; }
 public string MessageType { get; set; }
 public string Content { get; set; }
 }

SenderID发送者ID

ReceiverID 接受者ID

MessageType 消息类型 Text Voice 等等

Content 消息内容

3.添加中间件ChatWebSocketMiddleware


public class ChatWebSocketMiddleware
 {
 private static ConcurrentDictionary<string, System.Net.WebSockets.WebSocket> _sockets = new ConcurrentDictionary<string, System.Net.WebSockets.WebSocket>();

 private readonly RequestDelegate _next;

 public ChatWebSocketMiddleware(RequestDelegate next)
 {
  _next = next;
 }

 public async Task Invoke(HttpContext context)
 {
  if (!context.WebSockets.IsWebSocketRequest)
  {
  await _next.Invoke(context);
  return;
  }
  System.Net.WebSockets.WebSocket dummy;

  CancellationToken ct = context.RequestAborted;
  var currentSocket = await context.WebSockets.AcceptWebSocketAsync();
  //string socketId = Guid.NewGuid().ToString();
  string socketId = context.Request.Query["sid"].ToString();
  if (!_sockets.ContainsKey(socketId))
  {
  _sockets.TryAdd(socketId, currentSocket);
  }
  //_sockets.TryRemove(socketId, out dummy);
  //_sockets.TryAdd(socketId, currentSocket);

  while (true)
  {
  if (ct.IsCancellationRequested)
  {
   break;
  }

  string response = await ReceiveStringAsync(currentSocket, ct);
  MsgTemplate msg = JsonConvert.DeserializeObject<MsgTemplate>(response);

  if (string.IsNullOrEmpty(response))
  {
   if (currentSocket.State != WebSocketState.Open)
   {
   break;
   }

   continue;
  }

  foreach (var socket in _sockets)
  {
   if (socket.Value.State != WebSocketState.Open)
   {
   continue;
   }
   if (socket.Key == msg.ReceiverID || socket.Key == socketId)
   {
   await SendStringAsync(socket.Value, JsonConvert.SerializeObject(msg), ct);
   }
  }
  }

  //_sockets.TryRemove(socketId, out dummy);

  await currentSocket.CloseAsync(WebSocketCloseStatus.NormalClosure, "Closing", ct);
  currentSocket.Dispose();
 }

 private static Task SendStringAsync(System.Net.WebSockets.WebSocket socket, string data, CancellationToken ct = default(CancellationToken))
 {
  var buffer = Encoding.UTF8.GetBytes(data);
  var segment = new ArraySegment<byte>(buffer);
  return socket.SendAsync(segment, WebSocketMessageType.Text, true, ct);
 }

 private static async Task<string> ReceiveStringAsync(System.Net.WebSockets.WebSocket socket, CancellationToken ct = default(CancellationToken))
 {
  var buffer = new ArraySegment<byte>(new byte[8192]);
  using (var ms = new MemoryStream())
  {
  WebSocketReceiveResult result;
  do
  {
   ct.ThrowIfCancellationRequested();

   result = await socket.ReceiveAsync(buffer, ct);
   ms.Write(buffer.Array, buffer.Offset, result.Count);
  }
  while (!result.EndOfMessage);

  ms.Seek(0, SeekOrigin.Begin);
  if (result.MessageType != WebSocketMessageType.Text)
  {
   return null;
  }

  using (var reader = new StreamReader(ms, Encoding.UTF8))
  {
   return await reader.ReadToEndAsync();
  }
  }
 }
 }

控制只有接收者才能收到消息


if (socket.Key == msg.ReceiverID || socket.Key == socketId)
{
 await SendStringAsync(socket.Value,JsonConvert.SerializeObject(msg), ct);
}

4.在Startup.cs中使用中间件


app.UseWebSockets();
app.UseMiddleware<ChatWebSocketMiddleware>();

5.建立移动端测试示例 这里采用Ionic3运行在web端

创建ionic3项目略过 新手可点这里查看 或者有Angular2/4项目竟然可直接往下看

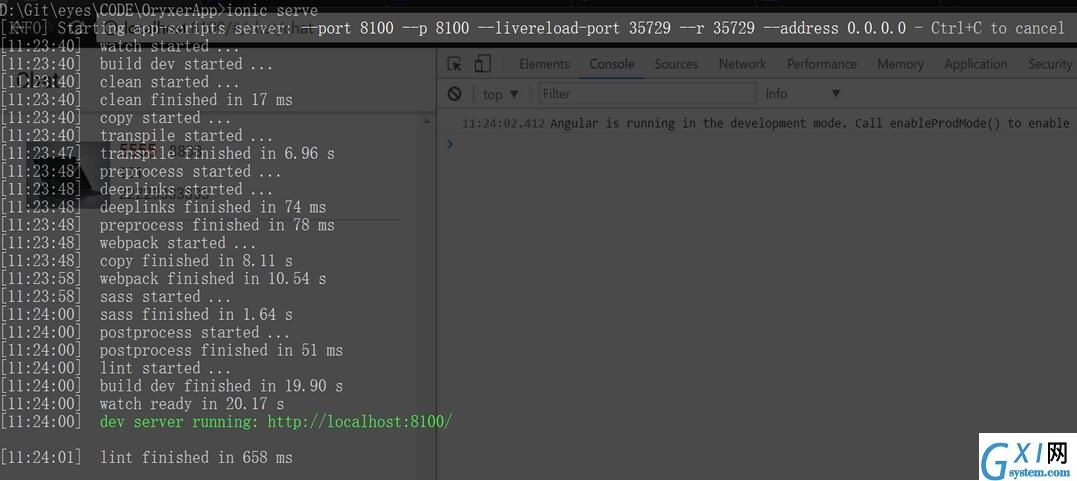

(1) 启动Ionic项目

当初创建ionic3项目时候遇到不少问题

比如ionic-cli初始化项目失败 切换到默认npmorg源就好了

比如ionic serve失败 打开代理允许FQ就好了

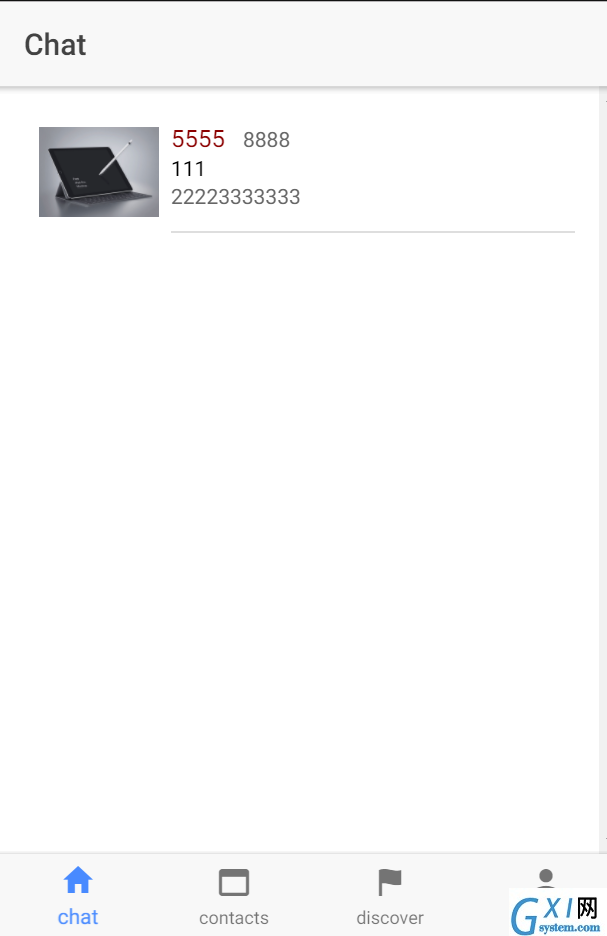

启动后界面是这样式的

(2) 创建聊天窗口dialog 具体布局实现 模块加载略过直接进入websocket实现

在这之前别忘了启动web项目 否则会出现这样情况 链接不到服务

(3)dialog.ts具体实现


export class Dialog {

 private ws: any;
 private msgArr: Array<any>;

 constructor(private httpService: HttpService) {

 this.msgArr = [];
 }

 ionViewDidEnter() {
 if (!this.ws) {
  this.ws = new WebSocket("ws://localhost:56892?sid=222");

  this.ws.onopen = () => {
  console.log('open');
  };

  this.ws.onmessage = (event) => {
  console.log('new message: ' + event.data);
  var msgObj = JSON.parse(event.data);
  this.msgArr.push(msgObj);;
  };

  this.ws.onerror = () => {
  console.log('error occurred!');
  };

  this.ws.onclose = (event) => {
  console.log('close code=' + event.code);
  };
 }
 }

 sendMsg(msg) {//msg为我要发送的内容 比如"hello world"
 var msgObj = {
  SenderID: "222",
  ReceiverID: "111",
  MessageType: "text",
  Content: msg
 };
 this.ws.send(JSON.stringify(msgObj));
 }

ws://localhost:56892?sid=222 这是websocke服务链接地址
sid表示着我这个端的WebSocke唯一标识 找到这个key就可以找到我这个用户端了

6.在web端也实现一个会话窗口


<p class="container" style="width:90%;margin:0px auto;border:1px solid steelblue;">
 <p class="msg">
 <p id="msgs" style="height:200px;"></p>
 </p>

 <p style="display:block;width:100%">
 <input type="text" style="max-width:unset;width:100%;max-width:100%" id="MessageField" placeholder="type message and press enter" />
 </p>
</p>


<script>
 $(function () {
  $('.navbar-default').addClass('on');

  var userName = '@Model';

  var protocol = location.protocol === "https:" ? "wss:" : "ws:";
  var wsUri = protocol + "//" + window.location.host + "?sid=111";
  var socket = new WebSocket(wsUri);
  socket.onopen = e => {
  console.log("socket opened", e);
  };

  socket.onclose = function (e) {
  console.log("socket closed", e);
  };

  socket.onmessage = function (e) {
  console.log(e);
  var msgObj = JSON.parse(e.data);
  $('#msgs').append(msgObj.Content + '<br />');
  };

  socket.onerror = function (e) {
  console.error(e.data);
  };

  $('#MessageField').keypress(function (e) {
  if (e.which != 13) {
   return;
  }

  e.preventDefault();

  var message = $('#MessageField').val();

  var msgObj = {
   SenderID:"111",
   ReceiverID:"222",
   MessageType: "text",
   Content: message
  };
  socket.send(JSON.stringify(msgObj));
  $('#MessageField').val('');
  });
 });
 </script>

基本开发完成 接下来看看效果

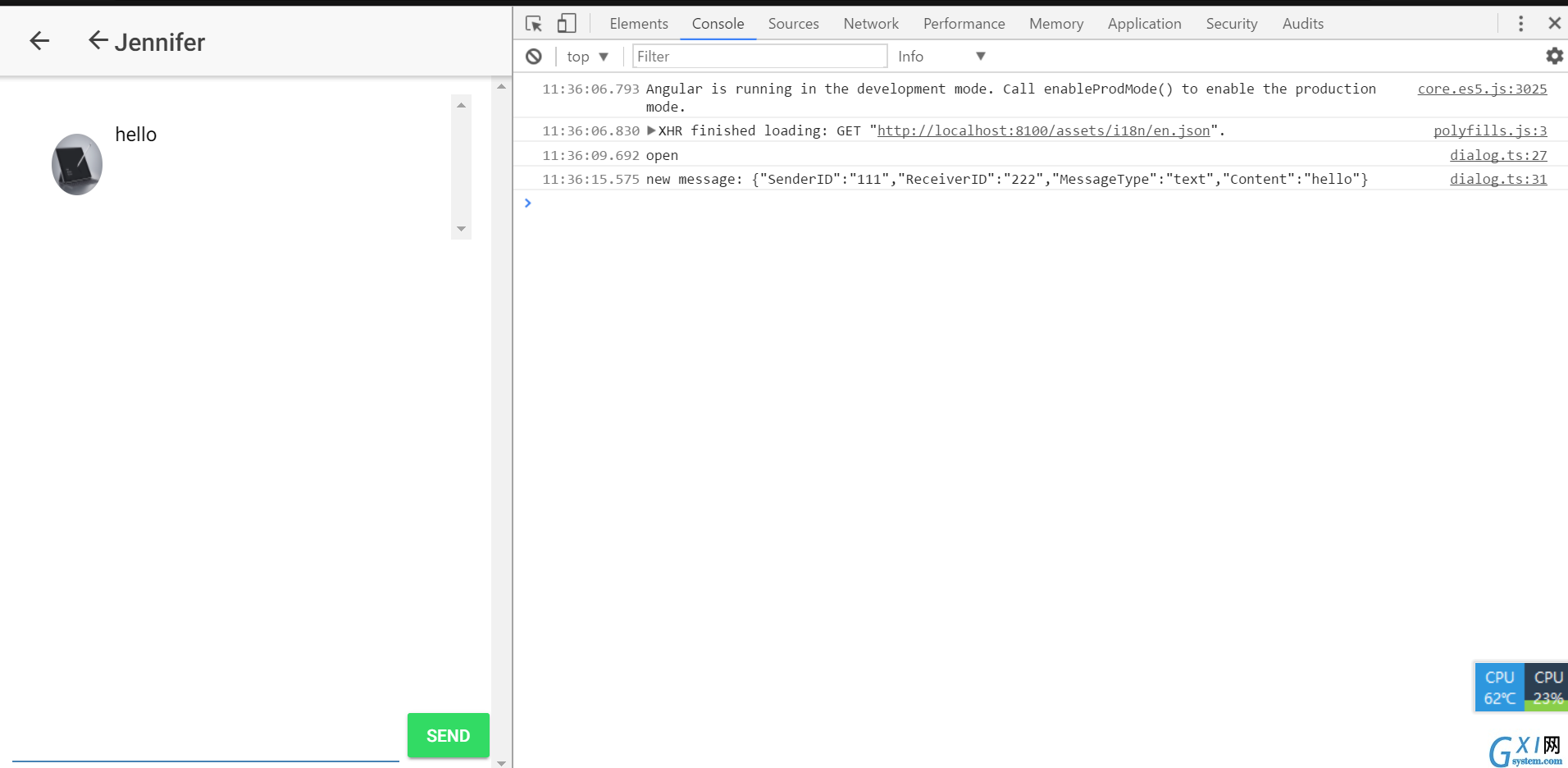

7.web和webapp端对话

8.webapp发送 web接收

9.目前就实现了这么多 因为项目还涉及其它技术 暂时不开放源码了

以上就是制作NetCore WebSocket即时通讯实例详解的详细内容,更多请关注gxlsystem.com其它相关文章!
