Python虚拟机中字典的实现原理是什么

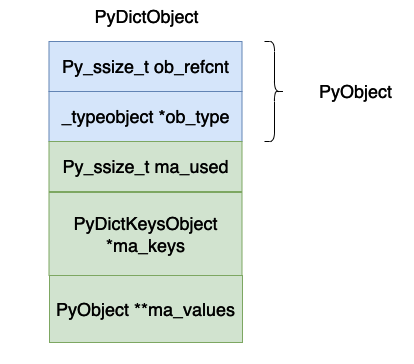

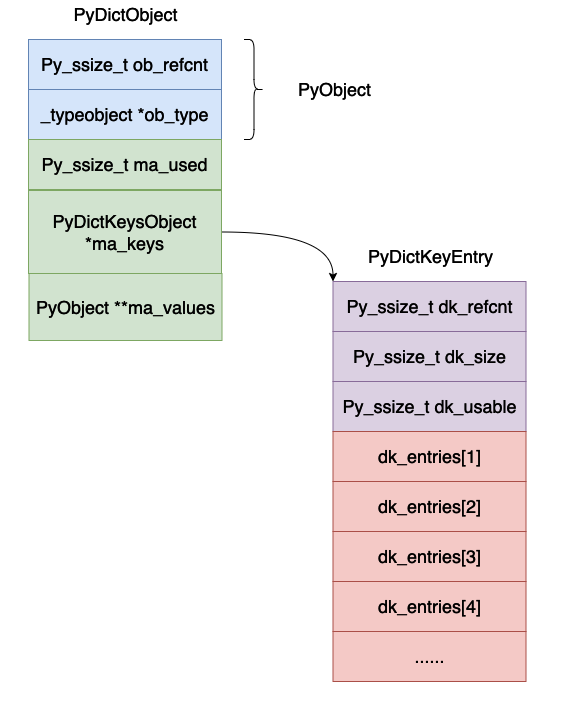

/* The ma_values pointer is NULL for a combined table * or points to an array of PyObject* for a split table */typedef struct {    PyObject_HEAD    Py_ssize_t ma_used;    PyDictKeysObject *ma_keys;    PyObject **ma_values;} PyDictObject; struct _dictkeysobject {    Py_ssize_t dk_refcnt;    Py_ssize_t dk_size;    dict_lookup_func dk_lookup;    Py_ssize_t dk_usable;    PyDictKeyEntry dk_entries[1];}; typedef struct {    /* Cached hash code of me_key. */    Py_hash_t me_hash;    PyObject *me_key;    PyObject *me_value; /* This field is only meaningful for combined tables */} PyDictKeyEntry;

static PyObject *dict_new(PyTypeObject *type, PyObject *args, PyObject *kwds){    PyObject *self;    PyDictObject *d;     assert(type != NULL && type->tp_alloc != NULL);    // 申请内存空间    self = type->tp_alloc(type, 0);    if (self == NULL)        return NULL;    d = (PyDictObject *)self;     /* The object has been implicitly tracked by tp_alloc */    if (type == &PyDict_Type)        _PyObject_GC_UNTRACK(d);    // 因为还没有增加数据 因此哈希表当中 ma_used = 0    d->ma_used = 0;    // 申请保存键值对的数组  PyDict_MINSIZE_COMBINED 是一个宏定义 值为 8 表示哈希表数组的最小长度    d->ma_keys = new_keys_object(PyDict_MINSIZE_COMBINED);    // 如果申请失败返回 NULL    if (d->ma_keys == NULL) {        Py_DECREF(self);        return NULL;    }    return self;} // new_keys_object 函数如下所示static PyDictKeysObject *new_keys_object(Py_ssize_t size){    PyDictKeysObject *dk;    Py_ssize_t i;    PyDictKeyEntry *ep0;     assert(size >= PyDict_MINSIZE_SPLIT);    assert(IS_POWER_OF_2(size));    // 这里是申请内存的位置真正申请内存空间的大小为 PyDictKeysObject 的大小加上 size-1 个PyDictKeyEntry的大小    // 这里你可能会有一位为啥不是 size 个 PyDictKeyEntry 的大小 因为在结构体 PyDictKeysObject 当中已经申请了一个 PyDictKeyEntry 对象了    dk = PyMem_MALLOC(sizeof(PyDictKeysObject) +                      sizeof(PyDictKeyEntry) * (size-1));    if (dk == NULL) {        PyErr_NoMemory();        return NULL;    }    // 下面主要是一些初始化的操作 dk_refcnt 设置成 1 因为目前只有一个字典对象使用 这个 PyDictKeysObject 对象    DK_DEBUG_INCREF dk->dk_refcnt = 1;    dk->dk_size = size; // 哈希表的大小    // 下面这行代码主要是表示哈希表当中目前还能存储多少个键值对 在 cpython 的实现当中允许有 2/3 的数组空间去存储数据 超过这个数则需要进行扩容    dk->dk_usable = USABLE_FRACTION(size); // #define USABLE_FRACTION(n) ((((n) << 1)+1)/3)    ep0 = &dk->dk_entries[0];    /* Hash value of slot 0 is used by popitem, so it must be initialized */    ep0->me_hash = 0;    // 将所有的键值对初始化成 NULL    for (i = 0; i < size; i++) {        ep0[i].me_key = NULL;        ep0[i].me_value = NULL;    }    dk->dk_lookup = lookdict_unicode_nodummy;    return dk;}

#define GROWTH_RATE(d) (((d)->ma_used*2)+((d)->ma_keys->dk_size>>1))

static intinsertion_resize(PyDictObject *mp){    return dictresize(mp, GROWTH_RATE(mp));} static intdictresize(PyDictObject *mp, Py_ssize_t minused){    Py_ssize_t newsize;    PyDictKeysObject *oldkeys;    PyObject **oldvalues;    Py_ssize_t i, oldsize;    // 下面的代码的主要作用就是计算得到能够大于等于 minused 最小的 2 的整数次幂/* Find the smallest table size > minused. */    for (newsize = PyDict_MINSIZE_COMBINED;         newsize <= minused && newsize > 0;         newsize <<= 1)        ;    if (newsize <= 0) {        PyErr_NoMemory();        return -1;    }    oldkeys = mp->ma_keys;    oldvalues = mp->ma_values;    /* Allocate a new table. */   // 创建新的数组    mp->ma_keys = new_keys_object(newsize);    if (mp->ma_keys == NULL) {        mp->ma_keys = oldkeys;        return -1;    }    if (oldkeys->dk_lookup == lookdict)        mp->ma_keys->dk_lookup = lookdict;    oldsize = DK_SIZE(oldkeys);    mp->ma_values = NULL;    /* If empty then nothing to copy so just return */    if (oldsize == 1) {        assert(oldkeys == Py_EMPTY_KEYS);        DK_DECREF(oldkeys);        return 0;    }    /* Main loop below assumes we can transfer refcount to new keys     * and that value is stored in me_value.     * Increment ref-counts and copy values here to compensate     * This (resizing a split table) should be relatively rare */    if (oldvalues != NULL) {        for (i = 0; i < oldsize; i++) {            if (oldvalues[i] != NULL) {                Py_INCREF(oldkeys->dk_entries[i].me_key);                oldkeys->dk_entries[i].me_value = oldvalues[i];            }        }    }    /* Main loop */    // 将原来数组当中的元素加入到新的数组当中    for (i = 0; i < oldsize; i++) {        PyDictKeyEntry *ep = &oldkeys->dk_entries[i];        if (ep->me_value != NULL) {            assert(ep->me_key != dummy);            insertdict_clean(mp, ep->me_key, ep->me_hash, ep->me_value);        }    }    // 更新一下当前哈希表当中能够插入多少数据    mp->ma_keys->dk_usable -= mp->ma_used;    if (oldvalues != NULL) {        /* NULL out me_value slot in oldkeys, in case it was shared */        for (i = 0; i < oldsize; i++)            oldkeys->dk_entries[i].me_value = NULL;        assert(oldvalues != empty_values);        free_values(oldvalues);        DK_DECREF(oldkeys);    }    else {        assert(oldkeys->dk_lookup != lookdict_split);        if (oldkeys->dk_lookup != lookdict_unicode_nodummy) {            PyDictKeyEntry *ep0 = &oldkeys->dk_entries[0];            for (i = 0; i < oldsize; i++) {                if (ep0[i].me_key == dummy)                    Py_DECREF(dummy);            }        }        assert(oldkeys->dk_refcnt == 1);        DK_DEBUG_DECREF PyMem_FREE(oldkeys);    }    return 0;}

static voidinsertdict_clean(PyDictObject *mp, PyObject *key, Py_hash_t hash,                 PyObject *value){    size_t i;    size_t perturb;    PyDictKeysObject *k = mp->ma_keys;    // 首先得到 mask 的值    size_t mask = (size_t)DK_SIZE(k)-1;    PyDictKeyEntry *ep0 = &k->dk_entries[0];    PyDictKeyEntry *ep;      i = hash & mask;    ep = &ep0[i];    for (perturb = hash; ep->me_key != NULL; perturb >>= PERTURB_SHIFT) {        // 下面便是遇到哈希冲突时的处理办法        i = (i << 2) + i + perturb + 1;        ep = &ep0[i & mask];    }    assert(ep->me_value == NULL);    ep->me_key = key;    ep->me_hash = hash;    ep->me_value = value;}
