基于python怎么实现单目三维重建

def camera_calibration(ImagePath):    # 循环中断    criteria = (cv2.TERM_CRITERIA_EPS + cv2.TERM_CRITERIA_MAX_ITER, 30, 0.001)    # 棋盘格尺寸（棋盘格的交叉点的个数）    row = 11    column = 8        objpoint = np.zeros((row * column, 3), np.float32)    objpoint[:, :2] = np.mgrid[0:row, 0:column].T.reshape(-1, 2)    objpoints = []  # 3d point in real world space    imgpoints = []  # 2d points in image plane.    batch_images = glob.glob(ImagePath + '/*.jpg')    for i, fname in enumerate(batch_images):        img = cv2.imread(batch_images[i])        imgGray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)        # find chess board corners        ret, corners = cv2.findChessboardCorners(imgGray, (row, column), None)        # if found, add object points, image points (after refining them)        if ret:            objpoints.append(objpoint)            corners2 = cv2.cornerSubPix(imgGray, corners, (11, 11), (-1, -1), criteria)            imgpoints.append(corners2)            # Draw and display the corners            img = cv2.drawChessboardCorners(img, (row, column), corners2, ret)            cv2.imwrite('Checkerboard_Image/Temp_JPG/Temp_' + str(i) + '.jpg', img)    print("成功提取:", len(batch_images), "张图片角点！")    ret, mtx, dist, rvecs, tvecs = cv2.calibrateCamera(objpoints, imgpoints, imgGray.shape[::-1], None, None)

def epipolar_geometric(Images_Path, K):    IMG = glob.glob(Images_Path)    img1, img2 = cv2.imread(IMG[0]), cv2.imread(IMG[1])    img1_gray = cv2.cvtColor(img1, cv2.COLOR_BGR2GRAY)    img2_gray = cv2.cvtColor(img2, cv2.COLOR_BGR2GRAY)    # Initiate SURF detector    SURF = cv2.xfeatures2d_SURF.create()    # compute keypoint & descriptions    keypoint1, descriptor1 = SURF.detectAndCompute(img1_gray, None)    keypoint2, descriptor2 = SURF.detectAndCompute(img2_gray, None)    print("角点数量：", len(keypoint1), len(keypoint2))    # Find point matches    bf = cv2.BFMatcher(cv2.NORM_L2, crossCheck=True)    matches = bf.match(descriptor1, descriptor2)    print("匹配点数量：", len(matches))    src_pts = np.asarray([keypoint1[m.queryIdx].pt for m in matches])    dst_pts = np.asarray([keypoint2[m.trainIdx].pt for m in matches])    # plot    knn_image = cv2.drawMatches(img1_gray, keypoint1, img2_gray, keypoint2, matches[:-1], None, flags=2)    image_ = Image.fromarray(np.uint8(knn_image))    image_.save("MatchesImage.jpg")    # Constrain matches to fit homography    retval, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 100.0)    # We select only inlier points    points1 = src_pts[mask.ravel() == 1]    points2 = dst_pts[mask.ravel() == 1]

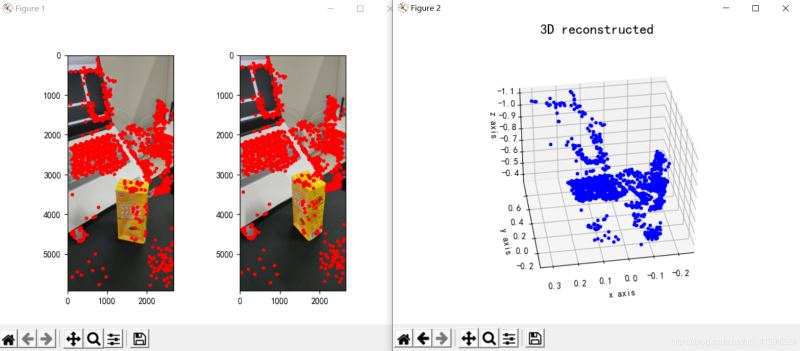

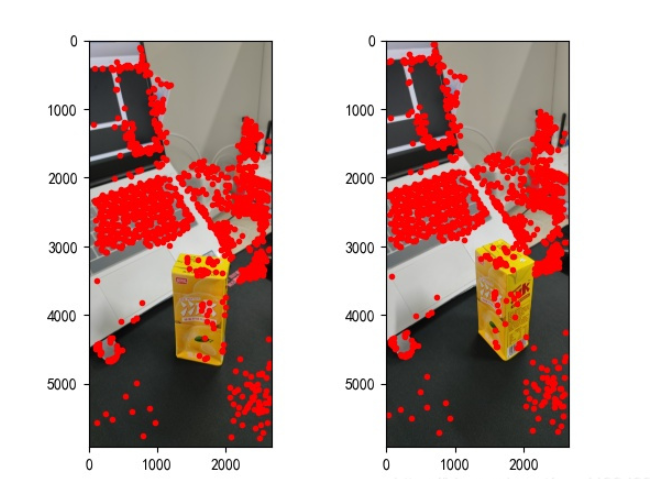

points1 = cart2hom(points1.T)points2 = cart2hom(points2.T)# plotfig, ax = plt.subplots(1, 2)ax[0].autoscale_view('tight')ax[0].imshow(cv2.cvtColor(img1, cv2.COLOR_BGR2RGB))ax[0].plot(points1[0], points1[1], 'r.')ax[1].autoscale_view('tight')ax[1].imshow(cv2.cvtColor(img2, cv2.COLOR_BGR2RGB))ax[1].plot(points2[0], points2[1], 'r.')plt.savefig('MatchesPoints.jpg')fig.show()# points1n = np.dot(np.linalg.inv(K), points1)points2n = np.dot(np.linalg.inv(K), points2)E = compute_essential_normalized(points1n, points2n)print('Computed essential matrix:', (-E / E[0][1]))P1 = np.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])P2s = compute_P_from_essential(E)ind = -1for i, P2 in enumerate(P2s):    # Find the correct camera parameters    d1 = reconstruct_one_point(points1n[:, 0], points2n[:, 0], P1, P2)    # Convert P2 from camera view to world view    P2_homogenous = np.linalg.inv(np.vstack([P2, [0, 0, 0, 1]]))    d2 = np.dot(P2_homogenous[:3, :4], d1)    if d1[2] > 0 and d2[2] > 0:        ind = iP2 = np.linalg.inv(np.vstack([P2s[ind], [0, 0, 0, 1]]))[:3, :4]Points3D = linear_triangulation(points1n, points2n, P1, P2)fig = plt.figure()fig.suptitle('3D reconstructed', fontsize=16)ax = fig.gca(projection='3d')ax.plot(Points3D[0], Points3D[1], Points3D[2], 'b.')ax.set_xlabel('x axis')ax.set_ylabel('y axis')ax.set_zlabel('z axis')ax.view_init(elev=135, azim=90)plt.savefig('Reconstruction.jpg')plt.show()

import cv2import jsonimport numpy as npimport globfrom PIL import Imageimport matplotlib.pyplot as pltplt.rcParams['font.sans-serif'] = ['SimHei']plt.rcParams['axes.unicode_minus'] = Falsedef cart2hom(arr):    """ Convert catesian to homogenous points by appending a row of 1s    :param arr: array of shape (num_dimension x num_points)    :returns: array of shape ((num_dimension+1) x num_points)     """    if arr.ndim == 1:        return np.hstack([arr, 1])    return np.asarray(np.vstack([arr, np.ones(arr.shape[1])]))def compute_P_from_essential(E):    """ Compute the second camera matrix (assuming P1 = [I 0])        from an essential matrix. E = [t]R    :returns: list of 4 possible camera matrices.    """    U, S, V = np.linalg.svd(E)    # Ensure rotation matrix are right-handed with positive determinant    if np.linalg.det(np.dot(U, V)) < 0:        V = -V    # create 4 possible camera matrices (Hartley p 258)    W = np.array([[0, -1, 0], [1, 0, 0], [0, 0, 1]])    P2s = [np.vstack((np.dot(U, np.dot(W, V)).T, U[:, 2])).T,           np.vstack((np.dot(U, np.dot(W, V)).T, -U[:, 2])).T,           np.vstack((np.dot(U, np.dot(W.T, V)).T, U[:, 2])).T,           np.vstack((np.dot(U, np.dot(W.T, V)).T, -U[:, 2])).T]    return P2sdef correspondence_matrix(p1, p2):    p1x, p1y = p1[:2]    p2x, p2y = p2[:2]    return np.array([        p1x * p2x, p1x * p2y, p1x,        p1y * p2x, p1y * p2y, p1y,        p2x, p2y, np.ones(len(p1x))    ]).T    return np.array([        p2x * p1x, p2x * p1y, p2x,        p2y * p1x, p2y * p1y, p2y,        p1x, p1y, np.ones(len(p1x))    ]).Tdef scale_and_translate_points(points):    """ Scale and translate image points so that centroid of the points        are at the origin and avg distance to the origin is equal to sqrt(2).    :param points: array of homogenous point (3 x n)    :returns: array of same input shape and its normalization matrix    """    x = points[0]    y = points[1]    center = points.mean(axis=1)  # mean of each row    cx = x - center[0]  # center the points    cy = y - center[1]    dist = np.sqrt(np.power(cx, 2) + np.power(cy, 2))    scale = np.sqrt(2) / dist.mean()    norm3d = np.array([        [scale, 0, -scale * center[0]],        [0, scale, -scale * center[1]],        [0, 0, 1]    ])    return np.dot(norm3d, points), norm3ddef compute_image_to_image_matrix(x1, x2, compute_essential=False):    """ Compute the fundamental or essential matrix from corresponding points        (x1, x2 3*n arrays) using the 8 point algorithm.        Each row in the A matrix below is constructed as        [x'*x, x'*y, x', y'*x, y'*y, y', x, y, 1]    """    A = correspondence_matrix(x1, x2)    # compute linear least square solution    U, S, V = np.linalg.svd(A)    F = V[-1].reshape(3, 3)    # constrain F. Make rank 2 by zeroing out last singular value    U, S, V = np.linalg.svd(F)    S[-1] = 0    if compute_essential:        S = [1, 1, 0]  # Force rank 2 and equal eigenvalues    F = np.dot(U, np.dot(np.diag(S), V))    return Fdef compute_normalized_image_to_image_matrix(p1, p2, compute_essential=False):    """ Computes the fundamental or essential matrix from corresponding points        using the normalized 8 point algorithm.    :input p1, p2: corresponding points with shape 3 x n    :returns: fundamental or essential matrix with shape 3 x 3    """    n = p1.shape[1]    if p2.shape[1] != n:        raise ValueError('Number of points do not match.')    # preprocess image coordinates    p1n, T1 = scale_and_translate_points(p1)    p2n, T2 = scale_and_translate_points(p2)    # compute F or E with the coordinates    F = compute_image_to_image_matrix(p1n, p2n, compute_essential)    # reverse preprocessing of coordinates    # We know that P1' E P2 = 0    F = np.dot(T1.T, np.dot(F, T2))    return F / F[2, 2]def compute_fundamental_normalized(p1, p2):    return compute_normalized_image_to_image_matrix(p1, p2)def compute_essential_normalized(p1, p2):    return compute_normalized_image_to_image_matrix(p1, p2, compute_essential=True)def skew(x):    """ Create a skew symmetric matrix *A* from a 3d vector *x*.        Property: np.cross(A, v) == np.dot(x, v)    :param x: 3d vector    :returns: 3 x 3 skew symmetric matrix from *x*    """    return np.array([        [0, -x[2], x[1]],        [x[2], 0, -x[0]],        [-x[1], x[0], 0]    ])def reconstruct_one_point(pt1, pt2, m1, m2):    """        pt1 and m1 * X are parallel and cross product = 0        pt1 x m1 * X  =  pt2 x m2 * X  =  0    """    A = np.vstack([        np.dot(skew(pt1), m1),        np.dot(skew(pt2), m2)    ])    U, S, V = np.linalg.svd(A)    P = np.ravel(V[-1, :4])    return P / P[3]def linear_triangulation(p1, p2, m1, m2):    """    Linear triangulation (Hartley ch 12.2 pg 312) to find the 3D point X    where p1 = m1 * X and p2 = m2 * X. Solve AX = 0.    :param p1, p2: 2D points in homo. or catesian coordinates. Shape (3 x n)    :param m1, m2: Camera matrices associated with p1 and p2. Shape (3 x 4)    :returns: 4 x n homogenous 3d triangulated points    """    num_points = p1.shape[1]    res = np.ones((4, num_points))    for i in range(num_points):        A = np.asarray([            (p1[0, i] * m1[2, :] - m1[0, :]),            (p1[1, i] * m1[2, :] - m1[1, :]),            (p2[0, i] * m2[2, :] - m2[0, :]),            (p2[1, i] * m2[2, :] - m2[1, :])        ])        _, _, V = np.linalg.svd(A)        X = V[-1, :4]        res[:, i] = X / X[3]    return resdef writetofile(dict, path):    for index, item in enumerate(dict):        dict[item] = np.array(dict[item])        dict[item] = dict[item].tolist()    js = json.dumps(dict)    with open(path, 'w') as f:        f.write(js)        print("参数已成功保存到文件")def readfromfile(path):    with open(path, 'r') as f:        js = f.read()        mydict = json.loads(js)    print("参数读取成功")    return mydictdef camera_calibration(SaveParamPath, ImagePath):    # 循环中断    criteria = (cv2.TERM_CRITERIA_EPS + cv2.TERM_CRITERIA_MAX_ITER, 30, 0.001)    # 棋盘格尺寸    row = 11    column = 8    objpoint = np.zeros((row * column, 3), np.float32)    objpoint[:, :2] = np.mgrid[0:row, 0:column].T.reshape(-1, 2)    objpoints = []  # 3d point in real world space    imgpoints = []  # 2d points in image plane.    batch_images = glob.glob(ImagePath + '/*.jpg')    for i, fname in enumerate(batch_images):        img = cv2.imread(batch_images[i])        imgGray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)        # find chess board corners        ret, corners = cv2.findChessboardCorners(imgGray, (row, column), None)        # if found, add object points, image points (after refining them)        if ret:            objpoints.append(objpoint)            corners2 = cv2.cornerSubPix(imgGray, corners, (11, 11), (-1, -1), criteria)            imgpoints.append(corners2)            # Draw and display the corners            img = cv2.drawChessboardCorners(img, (row, column), corners2, ret)            cv2.imwrite('Checkerboard_Image/Temp_JPG/Temp_' + str(i) + '.jpg', img)    print("成功提取:", len(batch_images), "张图片角点！")    ret, mtx, dist, rvecs, tvecs = cv2.calibrateCamera(objpoints, imgpoints, imgGray.shape[::-1], None, None)    dict = {'ret': ret, 'mtx': mtx, 'dist': dist, 'rvecs': rvecs, 'tvecs': tvecs}    writetofile(dict, SaveParamPath)    meanError = 0    for i in range(len(objpoints)):        imgpoints2, _ = cv2.projectPoints(objpoints[i], rvecs[i], tvecs[i], mtx, dist)        error = cv2.norm(imgpoints[i], imgpoints2, cv2.NORM_L2) / len(imgpoints2)        meanError += error    print("total error: ", meanError / len(objpoints))def epipolar_geometric(Images_Path, K):    IMG = glob.glob(Images_Path)    img1, img2 = cv2.imread(IMG[0]), cv2.imread(IMG[1])    img1_gray = cv2.cvtColor(img1, cv2.COLOR_BGR2GRAY)    img2_gray = cv2.cvtColor(img2, cv2.COLOR_BGR2GRAY)    # Initiate SURF detector    SURF = cv2.xfeatures2d_SURF.create()    # compute keypoint & descriptions    keypoint1, descriptor1 = SURF.detectAndCompute(img1_gray, None)    keypoint2, descriptor2 = SURF.detectAndCompute(img2_gray, None)    print("角点数量：", len(keypoint1), len(keypoint2))    # Find point matches    bf = cv2.BFMatcher(cv2.NORM_L2, crossCheck=True)    matches = bf.match(descriptor1, descriptor2)    print("匹配点数量：", len(matches))    src_pts = np.asarray([keypoint1[m.queryIdx].pt for m in matches])    dst_pts = np.asarray([keypoint2[m.trainIdx].pt for m in matches])    # plot    knn_image = cv2.drawMatches(img1_gray, keypoint1, img2_gray, keypoint2, matches[:-1], None, flags=2)    image_ = Image.fromarray(np.uint8(knn_image))    image_.save("MatchesImage.jpg")    # Constrain matches to fit homography    retval, mask = cv2.findHomography(src_pts, dst_pts, cv2.RANSAC, 100.0)    # We select only inlier points    points1 = src_pts[mask.ravel() == 1]    points2 = dst_pts[mask.ravel() == 1]    points1 = cart2hom(points1.T)    points2 = cart2hom(points2.T)    # plot    fig, ax = plt.subplots(1, 2)    ax[0].autoscale_view('tight')    ax[0].imshow(cv2.cvtColor(img1, cv2.COLOR_BGR2RGB))    ax[0].plot(points1[0], points1[1], 'r.')    ax[1].autoscale_view('tight')    ax[1].imshow(cv2.cvtColor(img2, cv2.COLOR_BGR2RGB))    ax[1].plot(points2[0], points2[1], 'r.')    plt.savefig('MatchesPoints.jpg')    fig.show()    #     points1n = np.dot(np.linalg.inv(K), points1)    points2n = np.dot(np.linalg.inv(K), points2)    E = compute_essential_normalized(points1n, points2n)    print('Computed essential matrix:', (-E / E[0][1]))    P1 = np.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])    P2s = compute_P_from_essential(E)    ind = -1    for i, P2 in enumerate(P2s):        # Find the correct camera parameters        d1 = reconstruct_one_point(points1n[:, 0], points2n[:, 0], P1, P2)        # Convert P2 from camera view to world view        P2_homogenous = np.linalg.inv(np.vstack([P2, [0, 0, 0, 1]]))        d2 = np.dot(P2_homogenous[:3, :4], d1)        if d1[2] > 0 and d2[2] > 0:            ind = i    P2 = np.linalg.inv(np.vstack([P2s[ind], [0, 0, 0, 1]]))[:3, :4]    Points3D = linear_triangulation(points1n, points2n, P1, P2)    return Points3Ddef main():    CameraParam_Path = 'CameraParam.txt'    CheckerboardImage_Path = 'Checkerboard_Image'    Images_Path = 'SubstitutionCalibration_Image/*.jpg'    # 计算相机参数    camera_calibration(CameraParam_Path, CheckerboardImage_Path)    # 读取相机参数    config = readfromfile(CameraParam_Path)    K = np.array(config['mtx'])    # 计算3D点    Points3D = epipolar_geometric(Images_Path, K)    # 重建3D点    fig = plt.figure()    fig.suptitle('3D reconstructed', fontsize=16)    ax = fig.gca(projection='3d')    ax.plot(Points3D[0], Points3D[1], Points3D[2], 'b.')    ax.set_xlabel('x axis')    ax.set_ylabel('y axis')    ax.set_zlabel('z axis')    ax.view_init(elev=135, azim=90)    plt.savefig('Reconstruction.jpg')    plt.show()if __name__ == '__main__':    main()
