Nginx动静分离及配置的方法是什么

时间：2023-05-12 09:00

1.Nginx动静分离概念

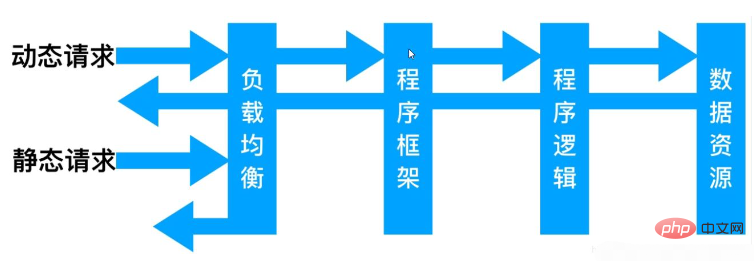

动静分离，通过中间件将动态请求和静态请求进行分离，分离资源，减少不必要的请求消耗，减少请求延时。

好处：动静分离后，即使动态服务不可用，但静态资源不会受到影响

通过中间件可以将动态请求和静态请求进行分离

Nginx动静分离及配置的方法是什么

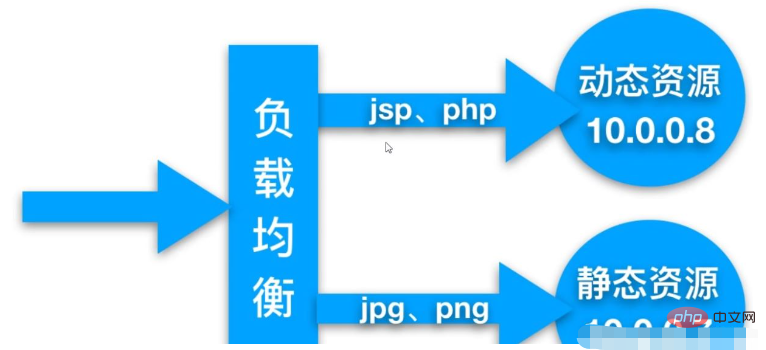

2.Nginx动静分离应用案例

Nginx动静分离及配置的方法是什么

2.1.环境规划

系统	服务	服务	地址
centos7.5	负载均衡	Nginx proxy	192.168.81.210
centos7.5	静态资源	Nginx static	192.168.81.220
centos7.5	动态资源	Tomcat server	192.168.81.230

2.2.配置静态资源

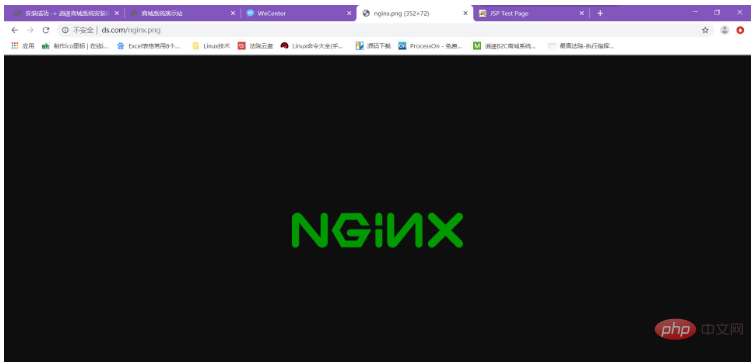

1.创建动静分离配置文件[root@localhost ~]# cd /etc/nginx/conf.d/[root@localhost conf.d]# vim ds.conf#动静分离server {	listen 80;	server_name ds.com;		location / {		root /web;		index index.html;	}		location ~* .*.(png|jpg|gif)$ {		root /web/images;	}}2.重载Nginx[root@localhost conf.d]# nginx -tnginx: the configuration file /etc/nginx/nginx.conf syntax is oknginx: configuration file /etc/nginx/nginx.conf test is successful[root@localhost conf.d]# systemctl reload nginx3.准备图片[root@localhost conf.d]# mkdir /web/images[root@localhost conf.d]# wget -O /web/images/nginx.png http://nginx.org/nginx.png

Nginx动静分离及配置的方法是什么

2.3.配置动态资源

1.编译安装tomcat[root@localhost soft]# tar xf apache-tomcat-7.0.92.tar.gz  -C /application/2.写入动态文件[root@localhost soft]# cd /application/[root@localhost application]# vim apache-tomcat-7.0.92/webapps/ROOT/java_test.jsp<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%><HTML>    <HEAD>        <TITLE>JSP Test Page</TITLE>    </HEAD>    <BODY>      <%        Random rand = new Random();        out.println("<h2>Random number:</h2>");        out.println(rand.nextInt(99)+100);      %>    </BODY></HTML>3.启动服务[root@localhost application]# cd apache-tomcat-7.0.92/[root@localhost apache-tomcat-7.0.92]# ./bin/startup.sh

2.4.整合动静分离

2.4.1.配置动静分离负载均衡

[root@localhost conf.d]# vim lb_ds.conf#整合动静分离upstream static_photo {        server 172.16.1.20:80;}upstream java {        server 172.16.1.30:8080;}server {        listen 80;        server_name ds.com;        access_log /nginx_log/lb_ds_access.log main;        location / {                root /web/ds;                index index.html;        }        location ~* .*.(jpg|png|gif)$ {                proxy_pass http://static_photo;                proxy_set_header HOST $http_host;                proxy_set_header X-Real-IP $remote_addr;                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;        }        location ~* .jsp$ {                proxy_pass http://java;                proxy_set_header HOST $http_host;                proxy_set_header X-Real-IP $remote_addr;                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;        }}

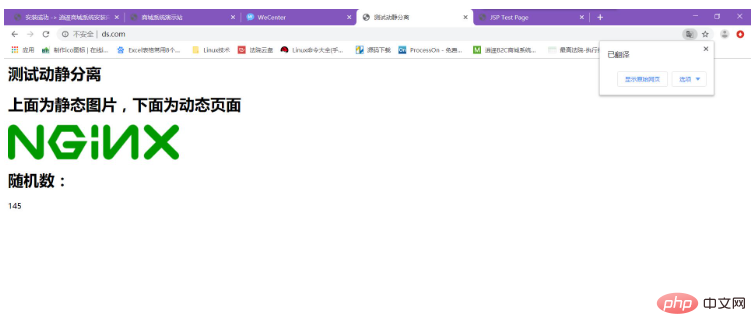

2.4.2.编写整合动静分离代码

[root@localhost conf.d]# vim /web/ds/index.html<html lang="en"><head>        <meta charset="UTF-8" />        <title>测试动静分离</title>        <script src="http://libs.baidu.com/jquery/2.1.4/jquery.min.js"></script></head><script type="text/javascript">$(document).ready(function(){        $.ajax({        type: "GET",        url: "http://ds.com/java_test.jsp",        success: function(data) {                $("#get_data").html(data)        },        error: function() {                alert("fail!!,请刷新再试");        }        });});</script>        <body>                <h2>测试动静分离</h2>                <h2>上面为静态图片，下面为动态页面</h2>                <img src="http://ds.com/nginx.png">                <div id="get_data"></div>        </body></html>
