zabbix监控Nginx/Tomcat/MySQL的方法

时间：2023-05-18 10:04

zabbix监控nginx

a机器：zabbix服务端（192.168.234.128） b机器：zabbix客户端（192.168.234.125）

在b机器（zabbix客户端）操作：

编辑nginx虚拟主机配置文件：

[root@centos ~]# vi /etc/nginx/conf.d/default.conf

在server{}中添加以下内容：

 location /nginx_status {  stub_status on;  access_log off;  allow 127.0.0.1;  deny all; }

重载nginx配置：

[root@centos ~]# nginx -s reload

测试：

[root@centos ~]# curl http://127.0.0.1/nginx_statusactive connections: 1 server accepts handled requests 3 3 3 reading: 0 writing: 1 waiting: 0

#nginx状态信息已显示

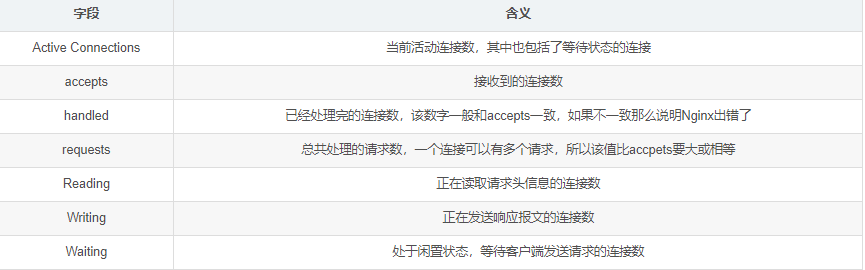

状态说明：

zabbix监控Nginx/Tomcat/MySQL的方法

添加监控脚本:

vi /usr/local/sbin/ngx_status.sh

添加以下内容：

#!/bin/bashurl="http://127.0.0.1/nginx_status"curl=/usr/bin/curl# 检测nginx进程是否存在function ping { /sbin/pidof nginx | wc -l }# 检测nginx性能function active { $curl $url 2>/dev/null| grep 'active' | awk '{print $nf}'}function reading { $curl $url 2>/dev/null| grep 'reading' | awk '{print $2}'}function writing { $curl $url 2>/dev/null| grep 'writing' | awk '{print $4}'}function waiting { $curl $url 2>/dev/null| grep 'waiting' | awk '{print $6}'}function accepts { $curl $url 2>/dev/null| awk nr==3 | awk '{print $1}'}function handled { $curl $url 2>/dev/null| awk nr==3 | awk '{print $2}'}function requests { $curl $url 2>/dev/null| awk nr==3 | awk '{print $3}'}$1

添加权限：

[root@centos ~]# chmod 755 /usr/local/sbin/ngx_status.sh

编辑zabbix_agent配置文件：

[root@centos ~]# vi /etc/zabbix/zabbix_agentd.conf

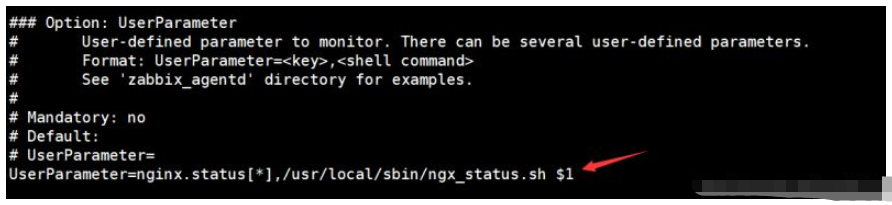

在option：userparameter处添加：userparameter=nginx.status[*],/usr/local/sbin/ngx_status.sh $1

zabbix监控Nginx/Tomcat/MySQL的方法

重启服务：

[root@centos ~]# systemctl restart zabbix-agent

在a机器（服务端）测试：

[root@zabbix ~]# zabbix_get -s 192.168.234.125 -k 'nginx.status[accepts]'6

在本机创建.xml文件并添加以下内容：（文件名称自定义）

<?xml version="1.0" encoding="utf-8"?><zabbix_export> <version>4.0</version> <date>2019-02-11t07:29:29z</date> <groups>  <group>   <name>templates</name>  </group> </groups> <templates>  <template>   <template>template app nginx</template>   <name>template app nginx</name>   <description/>   <groups>    <group>     <name>templates</name>    </group>   </groups>   <applications>    <application>     <name>nginx</name>    </application>   </applications>   <items>    <item>     <name>nginx status server accepts</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[accepts]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>accepts</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing>      <step>       <type>10</type>       <params/>      </step>     </preprocessing>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status connections active</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[active]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>active</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing/>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status server handled</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[handled]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>handled</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing>      <step>       <type>10</type>       <params/>      </step>     </preprocessing>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status ping</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[ping]</key>     <delay>60</delay>     <history>30d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>is live</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap>      <name>service state</name>     </valuemap>     <logtimefmt/>     <preprocessing/>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status connections reading</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[reading]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>reading</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing/>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status server requests</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[requests]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>requests</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing>      <step>       <type>10</type>       <params/>      </step>     </preprocessing>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status connections waiting</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[waiting]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>waiting</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing/>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>    <item>     <name>nginx status connections writing</name>     <type>0</type>     <snmp_community/>     <snmp_oid/>     <key>nginx.status[writing]</key>     <delay>60</delay>     <history>90d</history>     <trends>365d</trends>     <status>0</status>     <value_type>3</value_type>     <allowed_hosts/>     <units/>     <snmpv3_contextname/>     <snmpv3_securityname/>     <snmpv3_securitylevel>0</snmpv3_securitylevel>     <snmpv3_authprotocol>0</snmpv3_authprotocol>     <snmpv3_authpassphrase/>     <snmpv3_privprotocol>0</snmpv3_privprotocol>     <snmpv3_privpassphrase/>     <params/>     <ipmi_sensor/>     <authtype>0</authtype>     <username/>     <password/>     <publickey/>     <privatekey/>     <port/>     <description>writing</description>     <inventory_link>0</inventory_link>     <applications>      <application>       <name>nginx</name>      </application>     </applications>     <valuemap/>     <logtimefmt/>     <preprocessing/>     <jmx_endpoint/>     <timeout>3s</timeout>     <url/>     <query_fields/>     <posts/>     <status_codes>200</status_codes>     <follow_redirects>1</follow_redirects>     <post_type>0</post_type>     <http_proxy/>     <headers/>     <retrieve_mode>0</retrieve_mode>     <request_method>0</request_method>     <output_format>0</output_format>     <allow_traps>0</allow_traps>     <ssl_cert_file/>     <ssl_key_file/>     <ssl_key_password/>     <verify_peer>0</verify_peer>     <verify_host>0</verify_host>     <master_item/>    </item>   </items>   <discovery_rules/>   <httptests/>   <macros/>   <templates/>   <screens/>  </template> </templates> <triggers>  <trigger>   <expression>{template app nginx:nginx.status[ping].last()}=0</expression>   <recovery_mode>0</recovery_mode>   <recovery_expression/>   <name>nginx was down!</name>   <correlation_mode>0</correlation_mode>   <correlation_tag/>   <url/>   <status>0</status>   <priority>4</priority>   <description>nginx进程数：0，请注意</description>   <type>0</type>   <manual_close>0</manual_close>   <dependencies/>   <tags/>  </trigger> </triggers> <graphs>  <graph>   <name>nginx status connections</name>   <width>900</width>   <height>200</height>   <yaxismin>0.0000</yaxismin>   <yaxismax>100.0000</yaxismax>   <show_work_period>1</show_work_period>   <show_triggers>1</show_triggers>   <type>0</type>   <show_legend>1</show_legend>   <show_3d>0</show_3d>   <percent_left>0.0000</percent_left>   <percent_right>0.0000</percent_right>   <ymin_type_1>0</ymin_type_1>   <ymax_type_1>0</ymax_type_1>   <ymin_item_1>0</ymin_item_1>   <ymax_item_1>0</ymax_item_1>   <graph_items>    <graph_item>     <sortorder>0</sortorder>     <drawtype>0</drawtype>     <color>00c800</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[active]</key>     </item>    </graph_item>    <graph_item>     <sortorder>1</sortorder>     <drawtype>0</drawtype>     <color>c80000</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[reading]</key>     </item>    </graph_item>    <graph_item>     <sortorder>2</sortorder>     <drawtype>0</drawtype>     <color>0000c8</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[waiting]</key>     </item>    </graph_item>    <graph_item>     <sortorder>3</sortorder>     <drawtype>0</drawtype>     <color>c800c8</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[writing]</key>     </item>    </graph_item>   </graph_items>  </graph>  <graph>   <name>nginx status server</name>   <width>900</width>   <height>200</height>   <yaxismin>0.0000</yaxismin>   <yaxismax>100.0000</yaxismax>   <show_work_period>1</show_work_period>   <show_triggers>1</show_triggers>   <type>0</type>   <show_legend>1</show_legend>   <show_3d>0</show_3d>   <percent_left>0.0000</percent_left>   <percent_right>0.0000</percent_right>   <ymin_type_1>0</ymin_type_1>   <ymax_type_1>0</ymax_type_1>   <ymin_item_1>0</ymin_item_1>   <ymax_item_1>0</ymax_item_1>   <graph_items>    <graph_item>     <sortorder>0</sortorder>     <drawtype>0</drawtype>     <color>00c800</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[accepts]</key>     </item>    </graph_item>    <graph_item>     <sortorder>1</sortorder>     <drawtype>0</drawtype>     <color>c80000</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[handled]</key>     </item>    </graph_item>    <graph_item>     <sortorder>2</sortorder>     <drawtype>0</drawtype>     <color>0000c8</color>     <yaxisside>0</yaxisside>     <calc_fnc>2</calc_fnc>     <type>0</type>     <item>      <host>template app nginx</host>      <key>nginx.status[requests]</key>     </item>    </graph_item>   </graph_items>  </graph> </graphs> <value_maps>  <value_map>   <name>service state</name>   <mappings>    <mapping>     <value>0</value>     <newvalue>down</newvalue>    </mapping>    <mapping>     <value>1</value>     <newvalue>up</newvalue>    </mapping>   </mappings>  </value_map> </value_maps></zabbix_export>

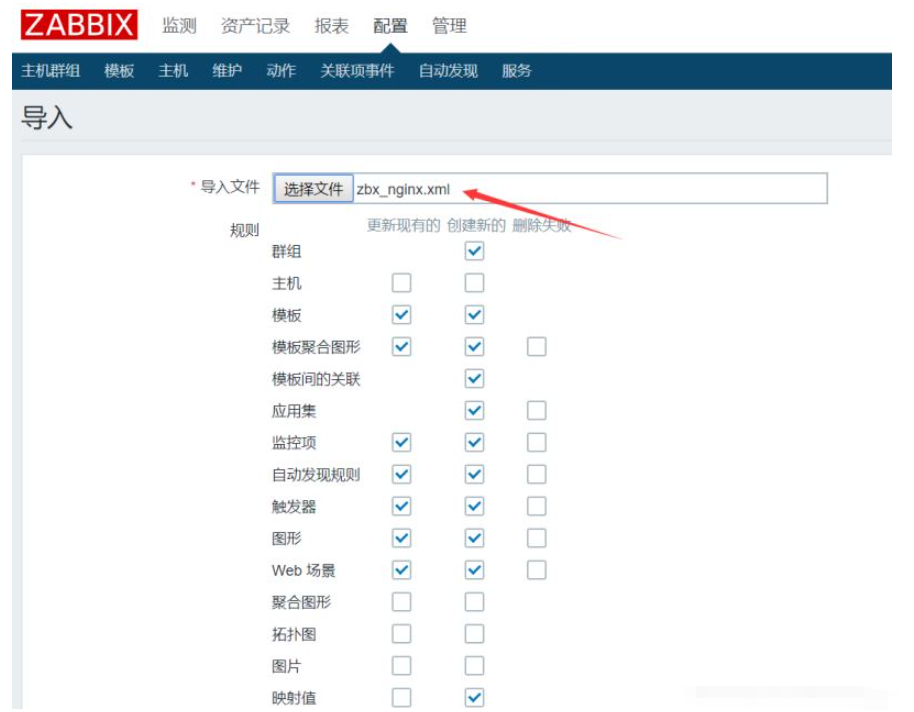

在zabbix前端页面点击配置→模板→导入：

zabbix监控Nginx/Tomcat/MySQL的方法

#导入刚才创建的xml文件即可

导入成功后在主机列表页面选择被监控的机器（b机器）链接该模板即可开始监控nginx

zabbix监控tomcat

a机器：zabbix服务端（192.168.234.128） b机器：zabbix客户端（192.168.234.125）

在a机器安装zabbix-java-gateway：

[root@zabbix ~]# wget https://mirrors.tuna.tsinghua.edu.cn/zabbix/zabbix/4.0/rhel/7/x86_64/zabbix-java-gateway-4.0.14-1.el7.x86_64.rpm[root@zabbix ~]# yum -y localinstall zabbix-java-gateway-4.0.14-1.el7.x86_64.rpm

编辑gateway配置文件：

[root@zabbix ~]# vi /etc/zabbix/zabbix_java_gateway.conf

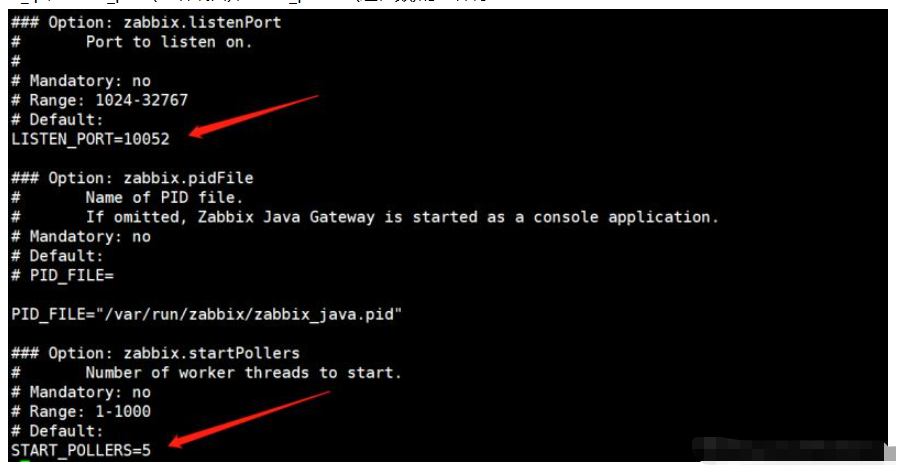

去掉listen_ip、listen_port(监听端口)、start_pollers(进程数)的注释符号#：

zabbix监控Nginx/Tomcat/MySQL的方法

#listen_ip定义被监控机器的地址，不指定默认监听全部机器

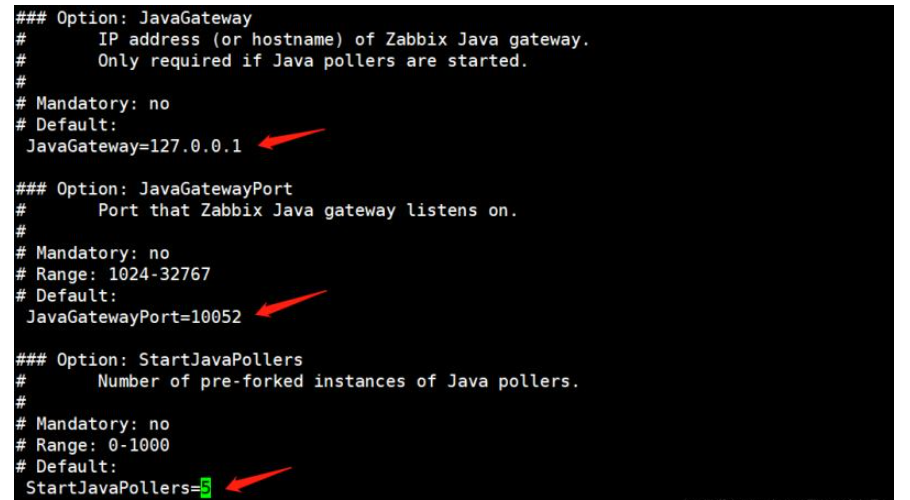

编辑server配置文件：

[root@zabbix ~]# vi /etc/zabbix/zabbix_server.conf

定义以下3个配置参数：

zabbix监控Nginx/Tomcat/MySQL的方法

启动zabbix-java-gateway服务：

[root@zabbix ~]# systemctl start zabbix-java-gateway

重启zabbix-server服务：

[root@zabbix ~]# systemctl restart zabbix-server

查看监听端口：

[root@zabbix ~]# netstat -lntp |grep javatcp6  0  0 :::10052    :::*     listen  8706/java

开启jmx

在b机器编辑tomcat配置文件：

[root@centos ~]# vi /usr/local/tomcat/bin/catalina.sh

添加以下内容：

export catalina_opts="$catalina_opts -dcom.sun.management.jmxremote-djava.rmi.server.hostname=192.168.234.125-dcom.sun.management.jmxremote.port=9999-dcom.sun.management.jmxremote.ssl=false-dcom.sun.management.jmxremote.authenticate=false"

#hostname定义b机器地址，端口9999（默认12345）

重启tomcat：

[root@centos ~]# /usr/local/tomcat/bin/shutdown.sh [root@centos ~]# /usr/local/tomcat/bin/startup.sh

查看监听端口9999：

[root@centos ~]# netstat -lntp |grep 9999tcp6  0  0 :::9999     :::*     listen  25861/java

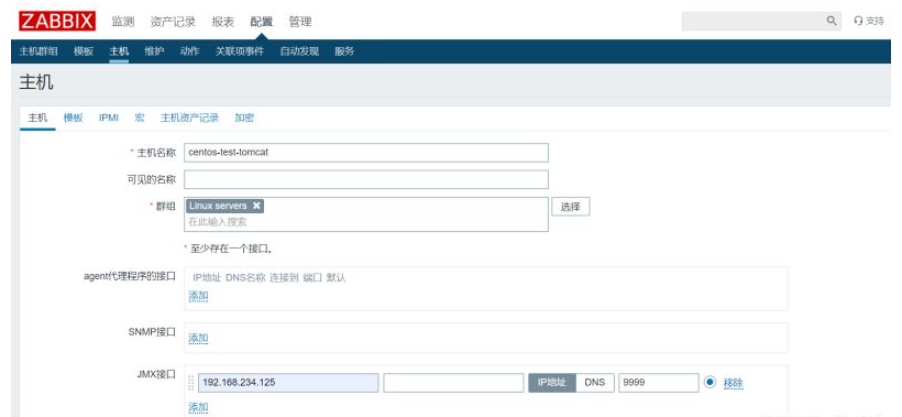

进入zabbix前端页面添加主机：

zabbix监控Nginx/Tomcat/MySQL的方法

#与普通情况添加监控主机不同，监控b机器的tomcat需要配置jmx接口

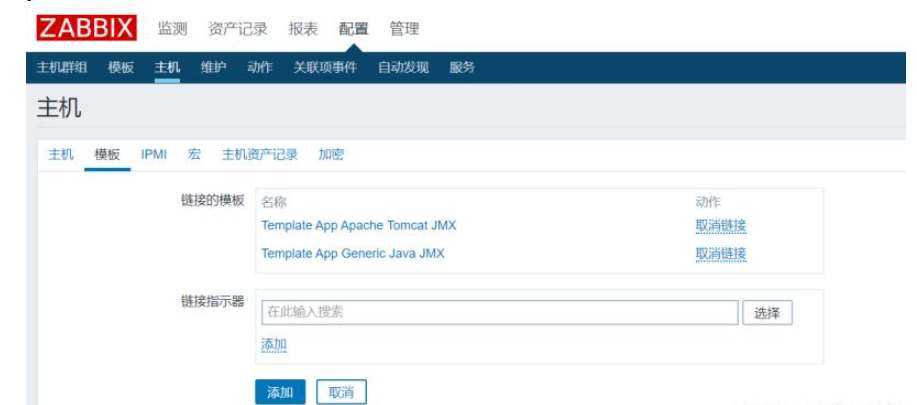

模板链接jmx相关的两个模板：

zabbix监控Nginx/Tomcat/MySQL的方法

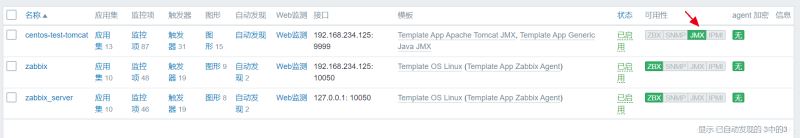

当jmx图标变绿即表示配置成功：

zabbix监控Nginx/Tomcat/MySQL的方法

zabbix监控mysql

a机器：zabbix服务端（192.168.234.128） b机器：zabbix客户端（192.168.234.125）

zabbix_agent定义mysql监控的配置文件：/etc/zabbix/zabbix_agentd.d/userparameter_mysql.conf

在b机器登录mysql创建用户：

mysql> grant usage,process,replication client on *.* to zamysql@'localhost' identified by 'zamysql';

创建配置文件指定的目录：

[root@centos ~]# mkdir /var/lib/zabbix

创建my.cnf文件：

[root@centos ~]# vi /var/lib/zabbix/.my.cnf

#需要注意该文件是隐藏文件

添加以下内容：

[mysql]host=localhostuser=zamysqlpassword='zamysql'socket=/tmp/mysql.sock[mysqladmin]host=localhostuser=zamysqlpassword='zamysql'socket=/tmp/mysql.sock

在a机器测试：

[root@zabbix ~]# zabbix_get -s 192.168.234.125 -p 10050 -k mysql.ping1[root@zabbix ~]# zabbix_get -s 192.168.234.125 -p 10050 -k mysql.versionmysql ver 14.14 distrib 5.6.43, for linux-glibc2.12 (x86_64) using editline wrapper[root@zabbix ~]# zabbix_get -s 192.168.234.125 -p 10050 -k mysql.size10240

#已成功获取数据

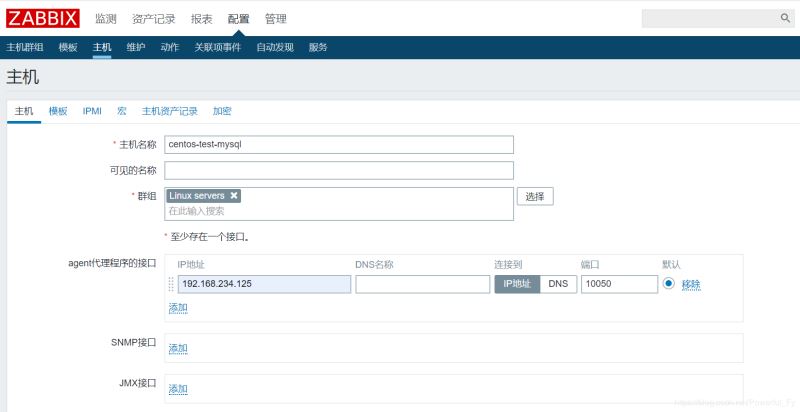

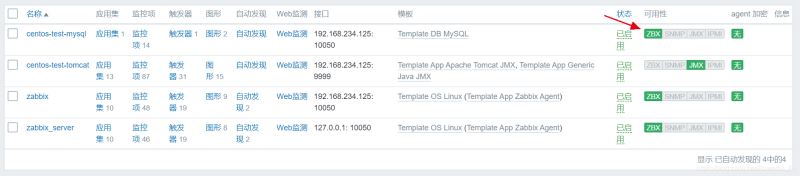

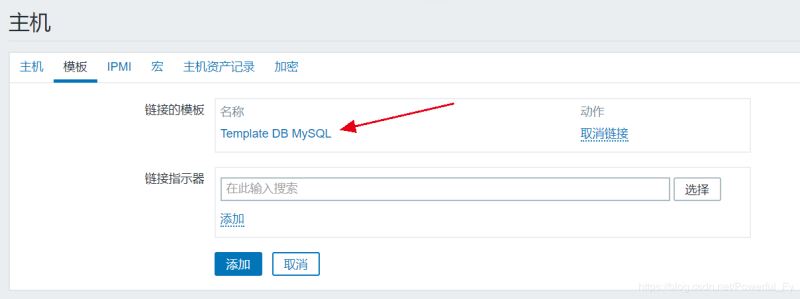

在zabbix前端页面添加主机：

zabbix监控Nginx/Tomcat/MySQL的方法
