CentOS 7中怎么使用cPanel配置Nginx反向代理

时间：2023-05-22 23:10

cPanel是当前世上功能最强大，最容易使用，最受用户欢迎的虚拟主机控制系统，很多国外主机主机都使用这套控制面板。

首先，我们需要安装 EPEL 库来启动这个进程

第一步: 安装 EPEL 库

root@server1 [/usr]# yum -y install epel-releaseLoaded plugins: fastestmirror, tsflags, universal-hooksLoading mirror speeds from cached hostfile* EA4: 66.23.237.210* base: mirrors.linode.com* extras: mirrors.linode.com* updates: mirrors.linode.comResolving Dependencies--> Running transaction check---> Package epel-release.noarch 0:7-5 will be installed--> Finished Dependency ResolutionDependencies Resolved========================================================================================   Package Arch Version Repository Size========================================================================================Installing:epel-release noarch 7-5 extras 14 k

第二步: 安装 nDeploy 的 CentOS RPM 库

可以安装 nDeploy 的 CentOS RPM 库来安装我们所需的 nDeploy Web 类软件和 Nginx 插件

root@server1 [/usr]# yum -y install http://rpm.piserve.com/nDeploy-release-centos-1.0-1.noarch.rpmLoaded plugins: fastestmirror, tsflags, universal-hooksnDeploy-release-centos-1.0-1.noarch.rpm | 1.7 kB 00:00:00Examining /var/tmp/yum-root-ei5tWJ/nDeploy-release-centos-1.0-1.noarch.rpm: nDeploy-release-centos-1.0-1.noarchMarking /var/tmp/yum-root-ei5tWJ/nDeploy-release-centos-1.0-1.noarch.rpm to be installedResolving Dependencies--> Running transaction check---> Package nDeploy-release-centos.noarch 0:1.0-1 will be installed--> Finished Dependency ResolutionDependencies Resolved========================================================================================Package Arch Version Repository Size========================================================================================Installing:nDeploy-release-centos noarch 1.0-1 /nDeploy-release-centos-1.0-1.noarch 110

第三步：安装 nDeploy 和 Nginx nDeploy 插件

root@server1 [/usr]# yum --enablerepo=ndeploy install nginx-nDeploy nDeployLoaded plugins: fastestmirror, tsflags, universal-hooksepel/x86_64/metalink | 9.9 kB 00:00:00epel | 4.3 kB 00:00:00ndeploy | 2.9 kB 00:00:00(1/4): ndeploy/7/x86_64/primary_db | 14 kB 00:00:00(2/4): epel/x86_64/group_gz | 169 kB 00:00:00(3/4): epel/x86_64/primary_db | 3.7 MB 00:00:02Dependencies Resolved========================================================================================Package Arch Version Repository Size========================================================================================Installing:nDeploy noarch 2.0-11.el7 ndeploy 80 knginx-nDeploy x86_64 1.8.0-34.el7 ndeploy 36 MInstalling for dependencies:PyYAML x86_64 3.10-11.el7 base 153 klibevent x86_64 2.0.21-4.el7 base 214 kmemcached x86_64 1.4.15-9.el7 base 84 kpython-inotify noarch 0.9.4-4.el7 base 49 kpython-lxml x86_64 3.2.1-4.el7 base 758 kTransaction Summary========================================================================================Install 2 Packages (+5 Dependent packages)

我们在自己的服务器上安装了 Nginx 插件，按照以上步骤完成了安装。现在我们可以配置 Nginx 作为反向代理和为已有的 cPanel 用户账户创建虚拟主机，为此我们可以运行如下脚本。

第四步：启动 Nginx 作为默认的前端 Web 服务器，并创建默认的配置文件

root@server1 [/usr]# /opt/nDeploy/scripts/cpanel-nDeploy-setup.sh enableModifying apache http and https port in cpanelhttpd restarted successfully.Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.Created symlink from /etc/systemd/system/multi-user.target.wants/ndeploy_watcher.service to /usr/lib/systemd/system/ndeploy_watcher.service.Created symlink from /etc/systemd/system/multi-user.target.wants/ndeploy_backends.service to /usr/lib/systemd/system/ndeploy_backends.service.ConfGen:: saheethaConfGen:: satest

你可以看到这个脚本将修改 Apache 的端口从 80 到另一个端口来让 Nginx 作为前端 Web 服务器，并为现有的 cPanel 用户创建虚拟主机配置文件。一旦完成，确认 Apache 和 Nginx 的状态。

Apache 状态：

root@server1 [/var/run/httpd]# systemctl status httpd● httpd.service - Apache Web ServerLoaded: loaded (/usr/lib/systemd/system/httpd.service; enabled; vendor preset: disabled)Active: active (running) since Mon 2016-01-18 06:34:23 UTC; 12s agoProcess: 25606 ExecStart=/usr/sbin/apachectl start (code=exited, status=0/SUCCESS)Main PID: 24760 (httpd)CGroup: /system.slice/httpd.service‣ 24760 /usr/local/apache/bin/httpd -k startJan 18 06:34:23 server1.centos7-test.com systemd[1]: Starting Apache Web Server...Jan 18 06:34:23 server1.centos7-test.com apachectl[25606]: httpd (pid 24760) already runningJan 18 06:34:23 server1.centos7-test.com systemd[1]: Started Apache Web Server.

Nginx 状态：

root@server1 [~]# systemctl status nginx● nginx.service - nginx-nDeploy - high performance web serverLoaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)Active: active (running) since Sun 2016-01-17 17:18:29 UTC; 13h agoDocs: http://nginx.org/en/docs/Main PID: 3833 (nginx)CGroup: /system.slice/nginx.service├─ 3833 nginx: master process /usr/sbin/nginx -c /etc/nginx/nginx.conf├─25473 nginx: worker process├─25474 nginx: worker process└─25475 nginx: cache manager processJan 17 17:18:29 server1.centos7-test.com systemd[1]: Starting nginx-nDeploy - high performance web server...Jan 17 17:18:29 server1.centos7-test.com nginx[3804]: nginx: the configuration file /etc/nginx/nginx.conf syntax is okJan 17 17:18:29 server1.centos7-test.com nginx[3804]: nginx: configuration file /etc/nginx/nginx.conf test is successfulJan 17 17:18:29 server1.centos7-test.com systemd[1]: Started nginx-nDeploy - high performance web server.

Nginx 作为前端服务器运行在 80 端口，Apache 配置被更改为监听 http 端口 9999 和 https 端口 4430。请看他们的情况：

root@server1 [/usr/local/src]# netstat -plan | grep httpdtcp 0 0 0.0.0.0:4430 0.0.0.0:* LISTEN 17270/httpdtcp 0 0 0.0.0.0:9999 0.0.0.0:* LISTEN 17270/httpdtcp6 0 0 :::4430 :::* LISTEN 17270/httpdtcp6 0 0 :::9999 :::* LISTEN 17270/httpd

root@server1 [/usr/local/src]# netstat -plan | grep nginxtcp 0 0 127.0.0.1:80 0.0.0.0:* LISTEN 17802/nginx: mastertcp 0 0 45.79.183.73:80 0.0.0.0:* LISTEN 17802/nginx: master

为已有用户创建的虚拟主机的配置文件在 “/etc/nginx/sites-enabled”。这个文件路径包含了 Nginx 主要配置文件。

root@server1 [/etc/nginx/sites-enabled]# ll | grep .conf-rw-r--r-- 1 root root 311 Jan 17 09:02 saheetha.com.conf-rw-r--r-- 1 root root 336 Jan 17 09:02 saheethastest.com.conf

一个域名的示例虚拟主机：

server {listen 45.79.183.73:80;#CPIPVSIX:80;# ServerNamesserver_name saheetha.com www.saheetha.com;access_log /usr/local/apache/domlogs/saheetha.com main;access_log /usr/local/apache/domlogs/saheetha.com-bytes_log bytes_log;include /etc/nginx/sites-enabled/saheetha.com.include;}

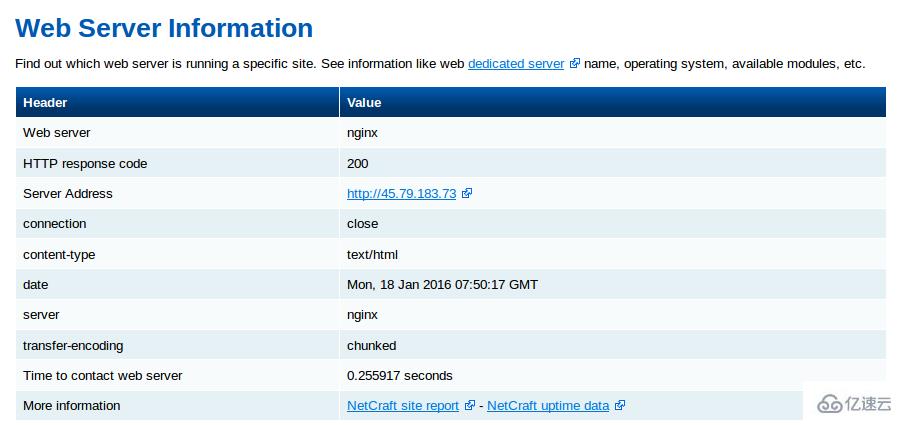

我们可以启动浏览器查看网站来确定 Web 服务器的工作状态。安装后，请阅读服务器上的 web 服务信息。

root@server1 [/home]# ip a | grep -i eth03: eth0:  mtu 1500 qdisc pfifo_fast state UP qlen 1000inet 45.79.183.73/24 brd 45.79.183.255 scope global dynamic eth0root@server1 [/home]# nginx -vnginx version: nginx/1.8.0
